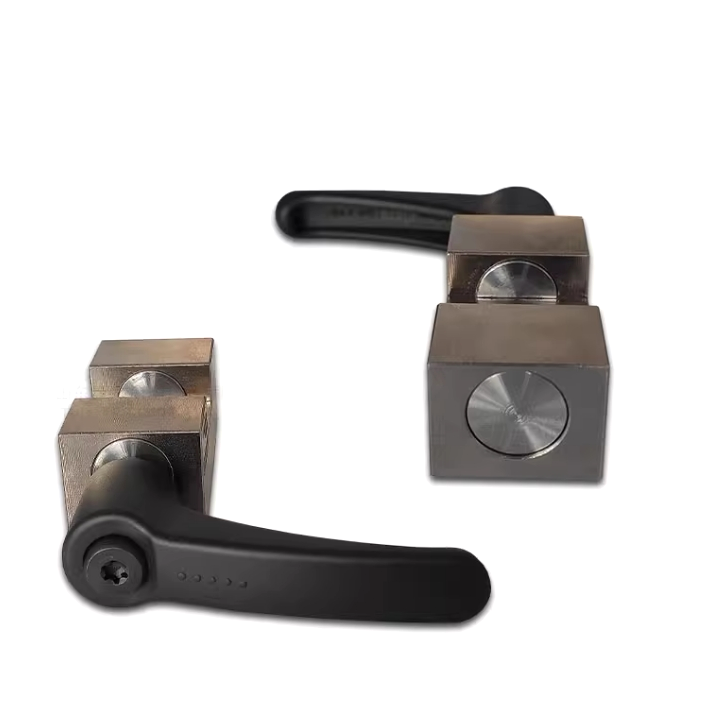

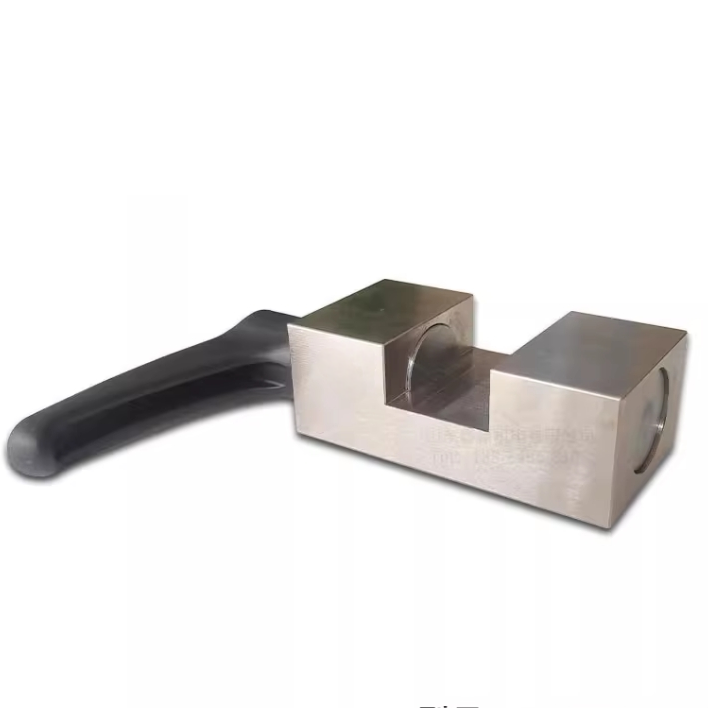

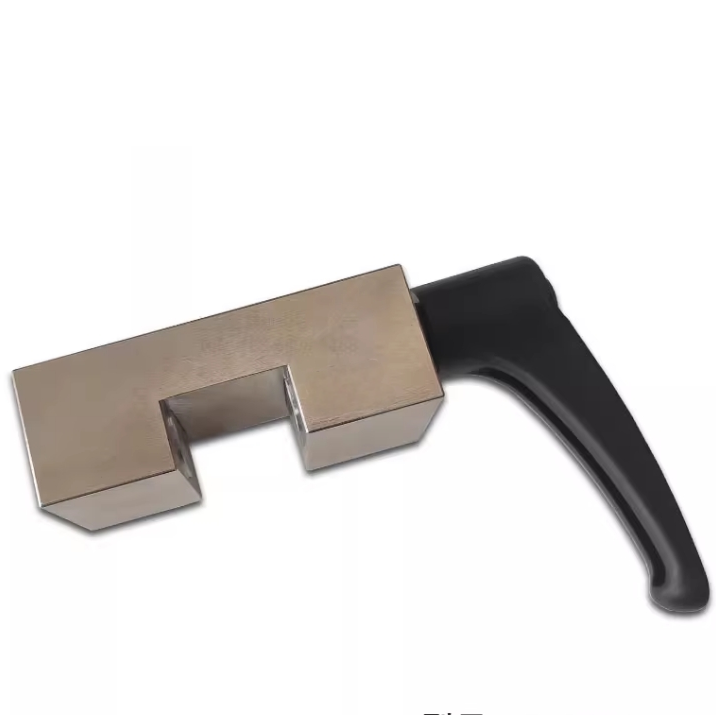

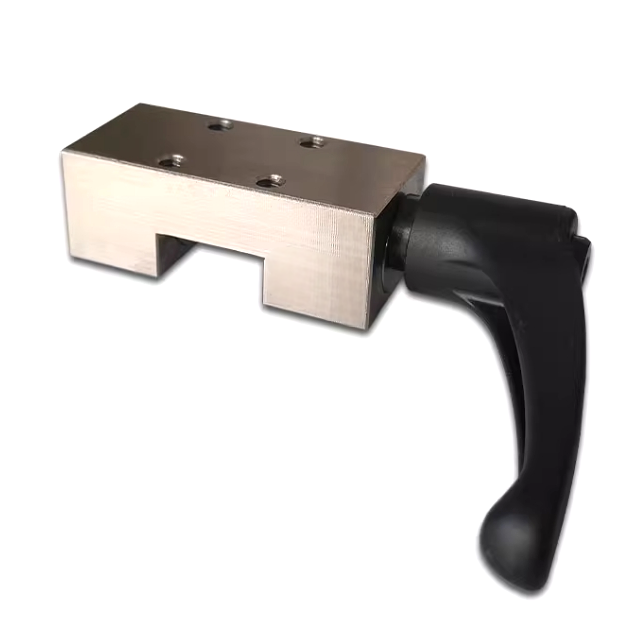

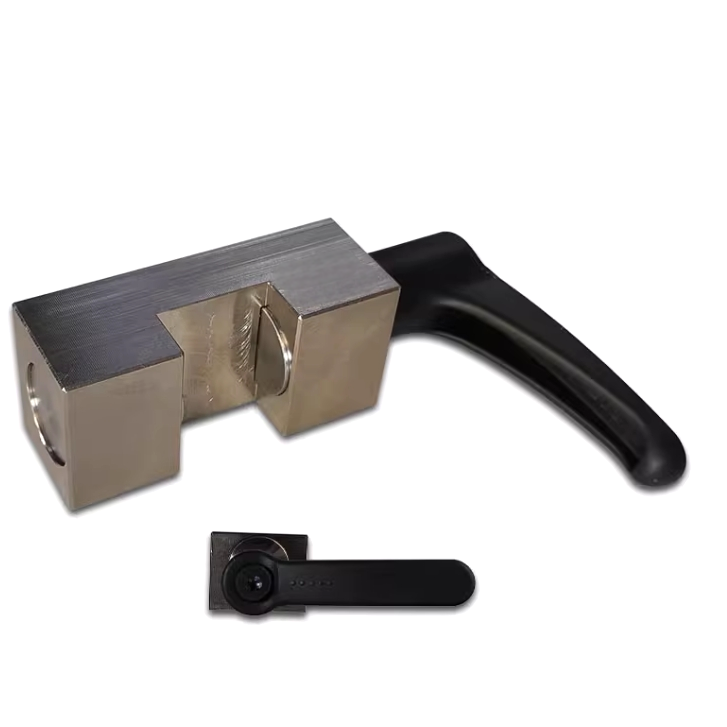

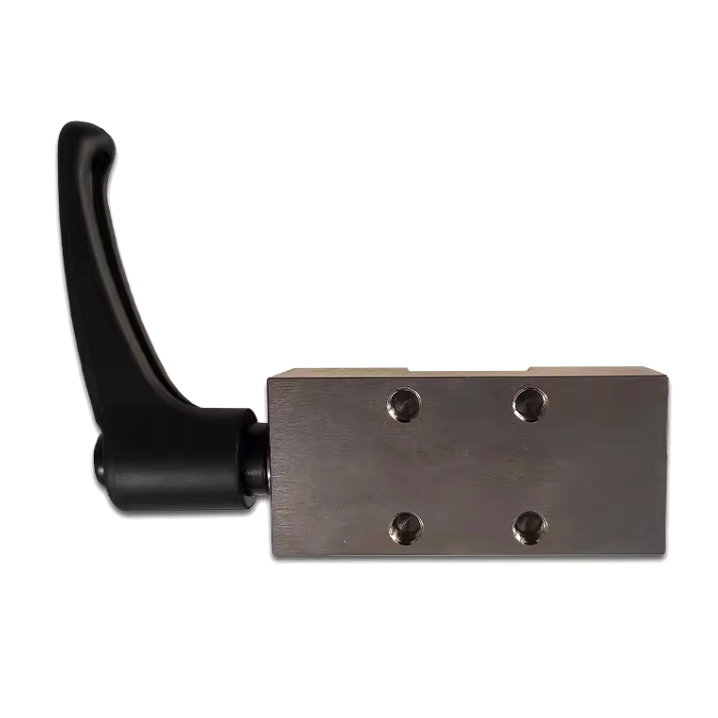

Cost-Effective Clamp Brake Replacement for Zimmer HK2501A
This manual linear guide clamp brake works with most 25mm linear rails,including brands like HIWIN,THK,PMI,NSK and NB.Up to 40% more affordable than the Zimmer HK2501A,without compromising quality.
Technical Data:
| Clamp Types | Manual |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast Delivery :Within 3~5 days.
Cost-Effective:35% cost savings.
Maintenance free:Up to 50,000 static clamping cycles.
Broad range of products:For all common profile rail guides.
Tool-free opening and closing:By turning the clamping lever.
Customizable Dimensions:Tailor linear guide clamp to your exact requirements with custom sizing options.
Handle Options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Direct Replacement for Zimmer clamp: Designed to fully replace Zimmer HK-series linear rail clamps,our product matches performance while offering superior cost efficiency.
Cost-Effective Clamp Brake Replacement for Zimmer HK2501A
This manual linear guide clamp brake works with most 25mm linear rails,including brands like HIWIN,THK,PMI,NSK and NB.Up to 40% more affordable than the Zimmer HK2501A,without compromising quality.
Technical Data:
| Clamp Types | Manual |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast Delivery :Within 3~5 days.
Cost-Effective:35% cost savings.
Maintenance free:Up to 50,000 static clamping cycles.
Broad range of products:For all common profile rail guides.
Tool-free opening and closing:By turning the clamping lever.
Customizable Dimensions:Tailor linear guide clamp to your exact requirements with custom sizing options.
Handle Options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Direct Replacement for Zimmer clamp: Designed to fully replace Zimmer HK-series linear rail clamps,our product matches performance while offering superior cost efficiency.
