Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
This manual linear guide clamp delivers an exceptional 1200N clamping force,specifically engineered for industry-standard 15mm linear guides.Experience effortless,tool-free operation:simply rotate the manual handle to instantly lock your guide rails into position with absolute security or release them in seconds.This robust clamp eliminates slippage and vibration,ensuring repeatable accuracy in CNC applications, automation stages, jigs, and fixturing.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 15mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
15mm Linear Guide Manual Lock Clamp Key Advantages:
Broad Range of Products:The manual lock clamp is suitable for all common profile rail guides.
Space-Saving Design:Compact construction minimizes footprint,ideal for installations with limited space.
360° Adjustable Handle:Freely position the handle for optimal accessibility and operation in any orientation.
Reduced Ownership Cost: Lowers both initial equipment setup and long-term maintenance expenses.
High Clamping Force:This linear rail locking clamp delivers up to 1200N clamping force for demanding industrial applications.
Simple & Reliable Installation:Streamlined design significantly reduces installation complexity and time for personnel.
Handle Options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.

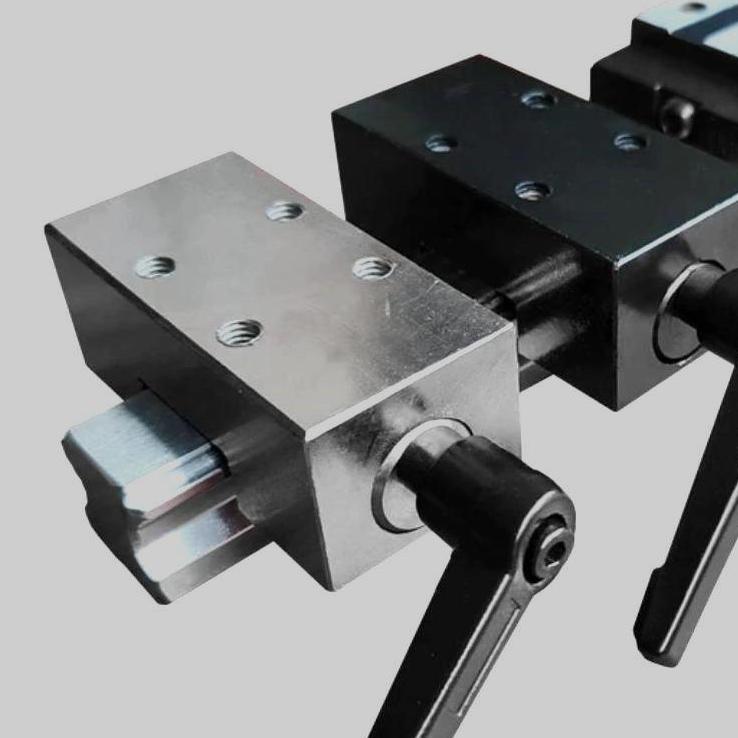

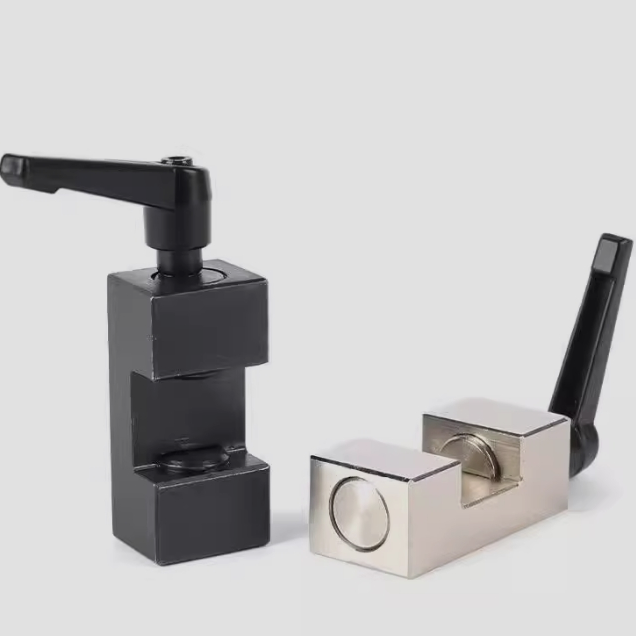

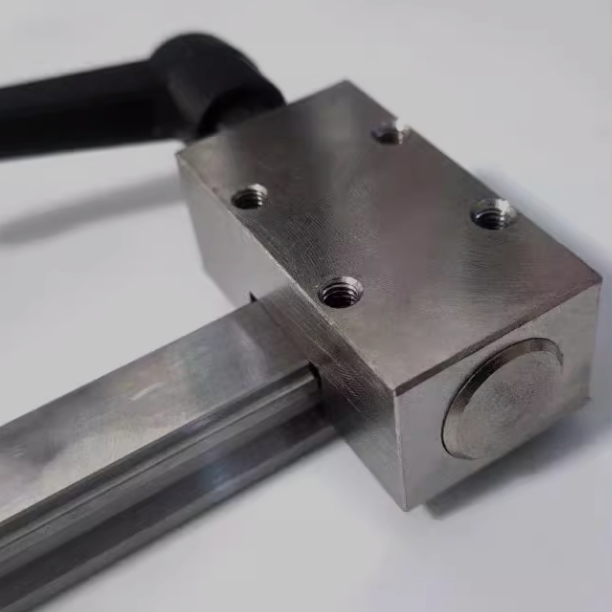

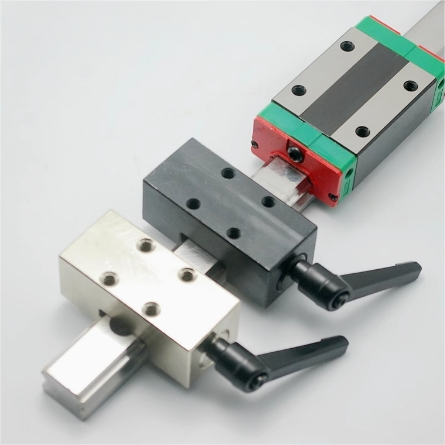

15mm Linear Rail Manual Lock Clamp Pictures
This manual linear guide clamp delivers an exceptional 1200N clamping force,specifically engineered for industry-standard 15mm linear guides.Experience effortless,tool-free operation:simply rotate the manual handle to instantly lock your guide rails into position with absolute security or release them in seconds.This robust clamp eliminates slippage and vibration,ensuring repeatable accuracy in CNC applications, automation stages, jigs, and fixturing.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 15mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
15mm Linear Guide Manual Lock Clamp Key Advantages:
Broad Range of Products:The manual lock clamp is suitable for all common profile rail guides.
Space-Saving Design:Compact construction minimizes footprint,ideal for installations with limited space.
360° Adjustable Handle:Freely position the handle for optimal accessibility and operation in any orientation.
Reduced Ownership Cost: Lowers both initial equipment setup and long-term maintenance expenses.
High Clamping Force:This linear rail locking clamp delivers up to 1200N clamping force for demanding industrial applications.
Simple & Reliable Installation:Streamlined design significantly reduces installation complexity and time for personnel.
Handle Options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
15mm Linear Rail Manual Lock Clamp Pictures
