Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
Directly replace HK1501A clamps with this manual 15mm rail clamp,engineered to eliminate vibration and secure linear sliders instantly.The manual clamptool-free handle enables rapid clamping/release,enhancing structural integrity during high-precision tasks.The nickel-plated construction resists corrosion in harsh environments.Universally compatible with 15mm HIWIN,THK,PMI,and NSK guide rails.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 15mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
15mm Manual Rail Clamp Key Advantages:
The manual clamp is suitable for all common profile rail guides.
Compact construction minimizes footprint,ideal for installations with limited space.
Freely position the handle for optimal accessibility and operation in any orientation.
Lowers both initial equipment setup and long-term maintenance expenses.
This linear rail clamp delivers up to 1200N clamping force for demanding industrial applications.
Streamlined design significantly reduces installation complexity and time for personnel.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.

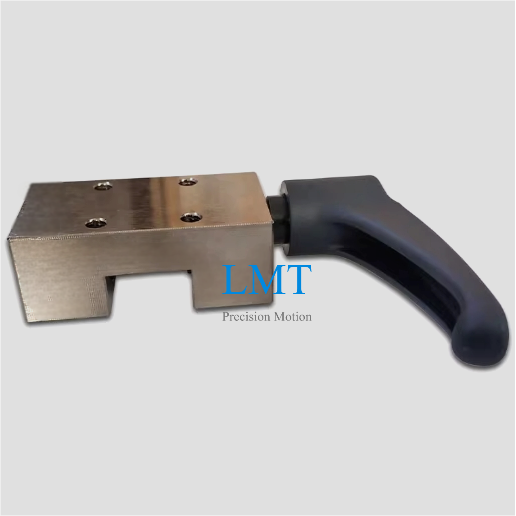

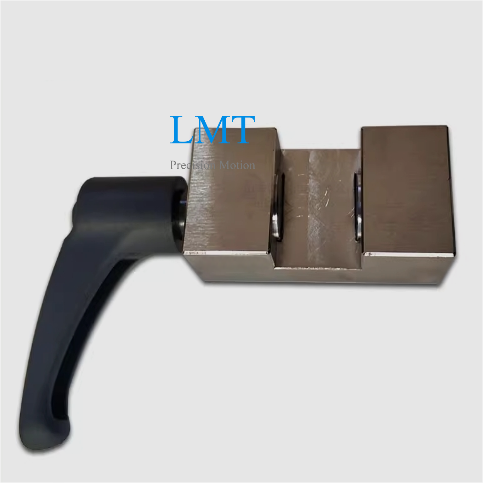

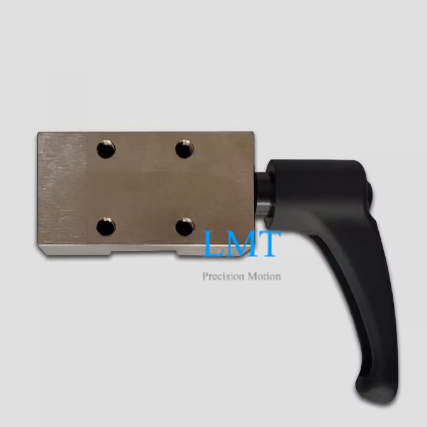

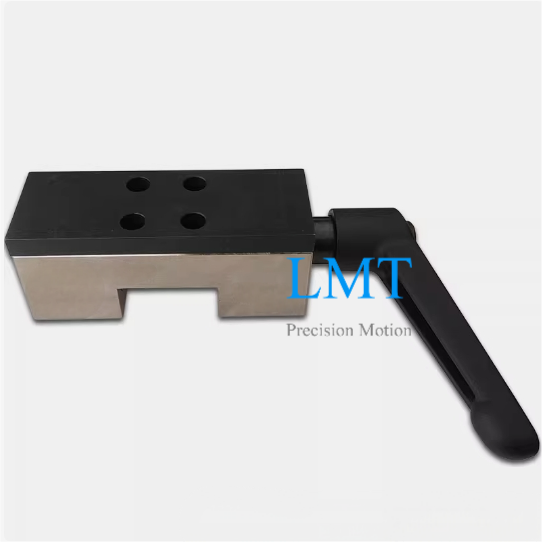

Linear Rail Manual Lock Clamp Pictures:
