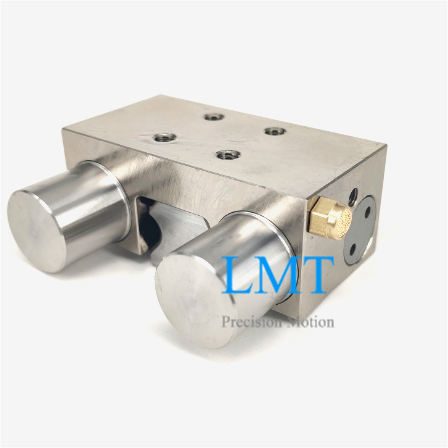

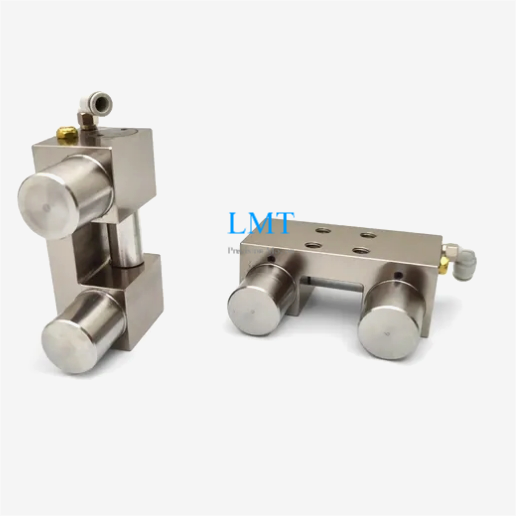

Enhance precision and stability in your industrial automation systems with our Pneumatic Normally Closed (NC) Braking Clamp,engineered exclusively for HIWIN EGH15CA and EGW15CA 15mm linear guides.This robust clamp delivers instant position locking,eliminates vibration,and significantly boosts guide rigidity for high-precision applications.
Specification:
| Clamp types | Pneumatic normally close |
| Linear rail sizes | 15mm |
| Standard type rated holding force(N) | Standard connection 400N,pressurized connection 1050N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
EGH15CA EGW15CA Linear Guide Braking Clamp Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 25%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamping element main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close(NC) Clamp Video
