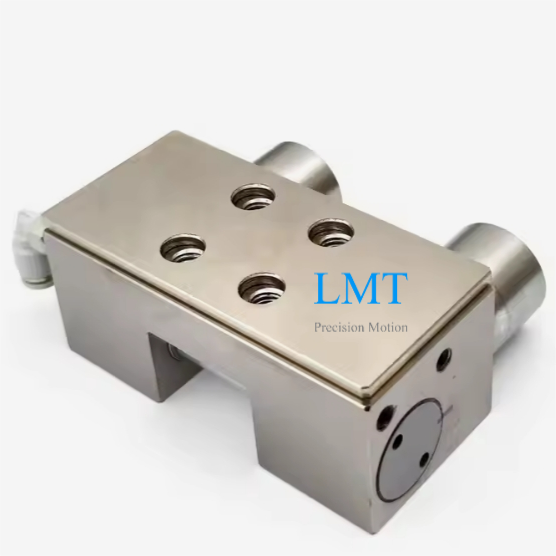

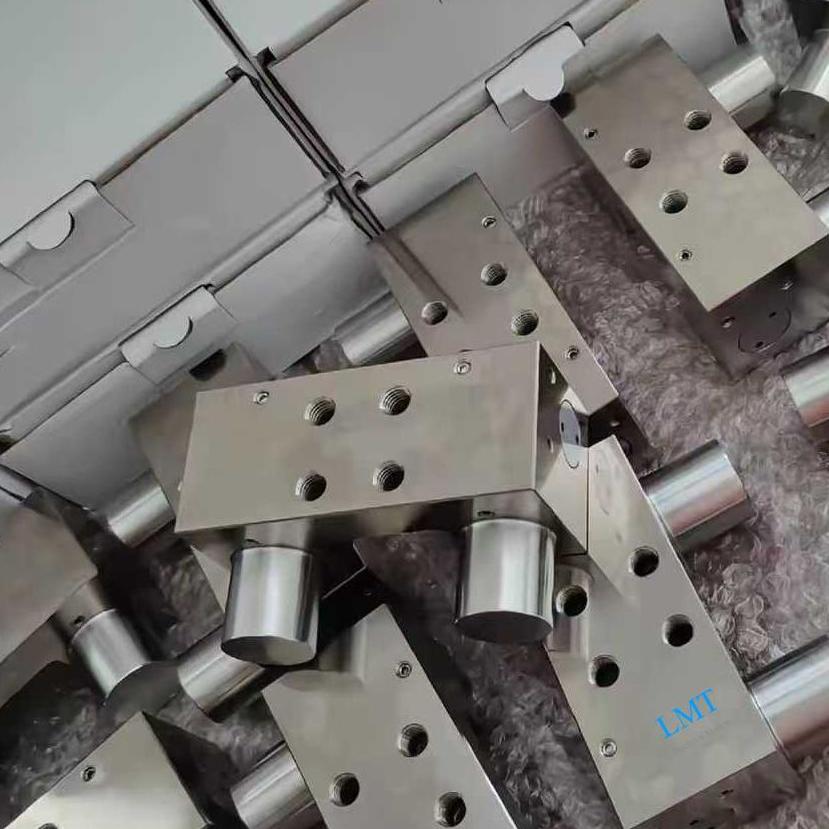

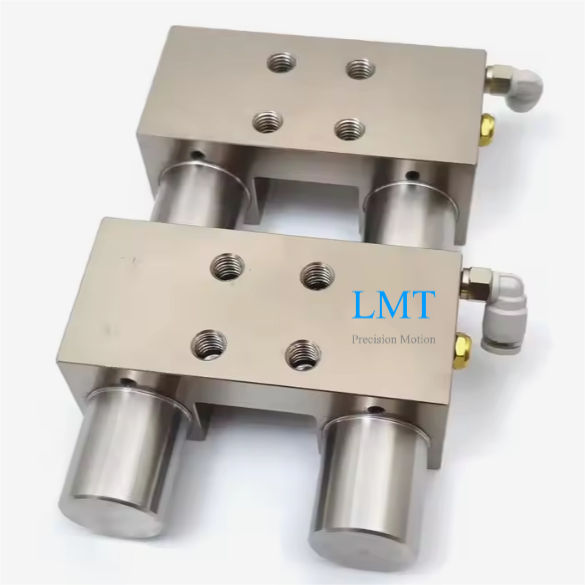

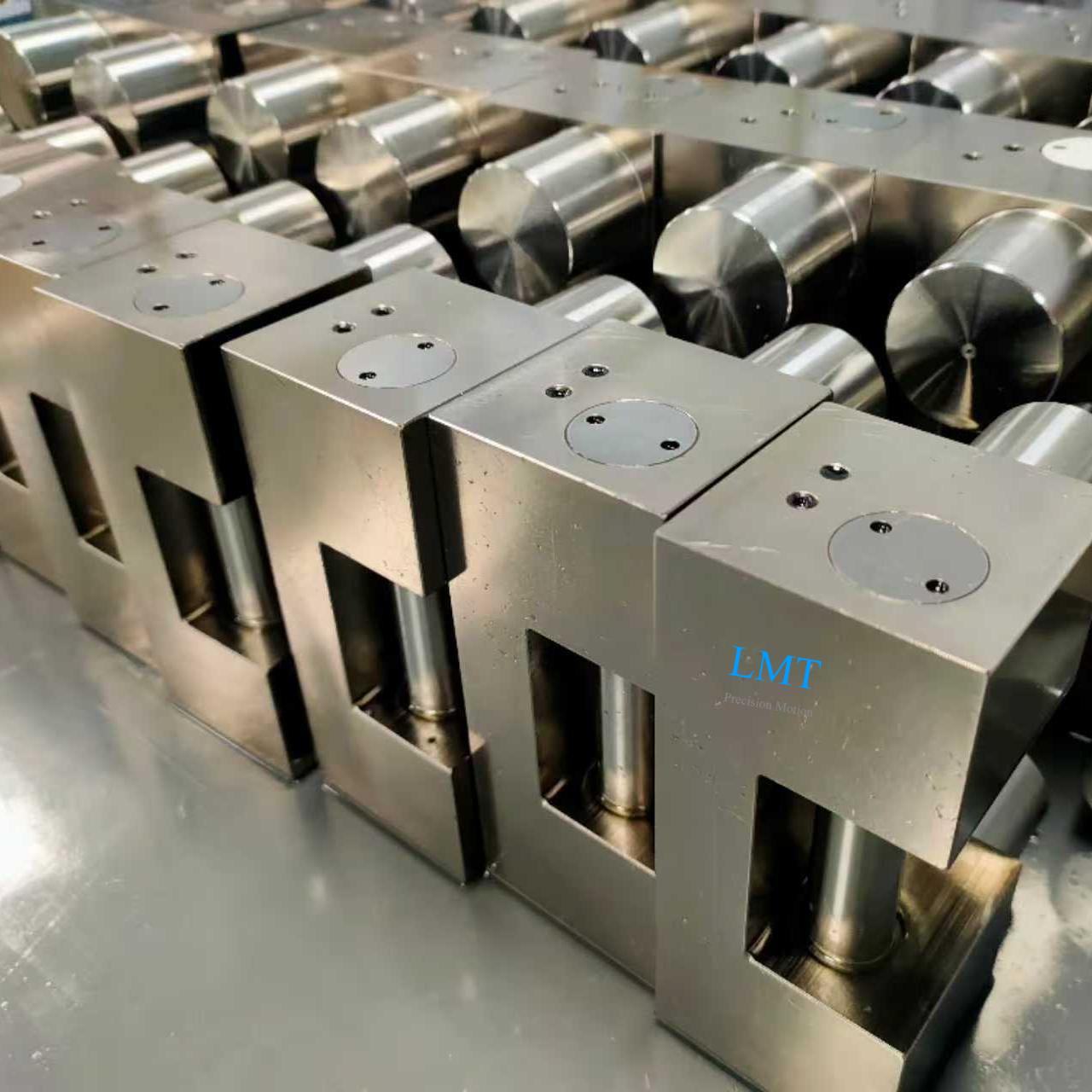

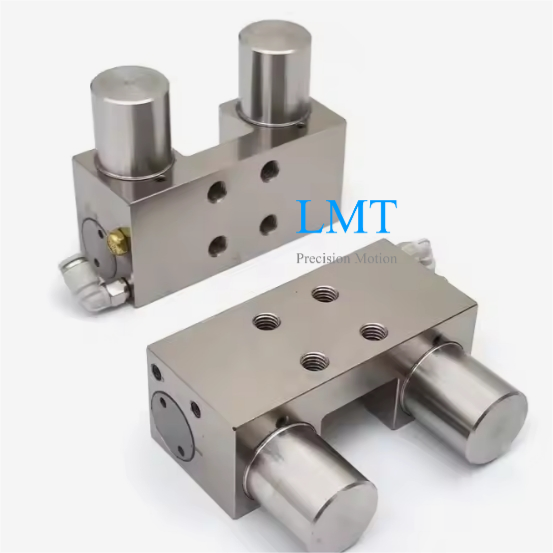

This pneumatic guide rail clamp is suitable for HIWIN HGH35CA and HGW35CA linear guides.Locks position securely when air supply is off (normally closed).Prevents vibration,ensures precise positioning,and significantly increases rail rigidity during machining or automation processes.Ideal for enhanced stability on HIWIN 35mm guides.
Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 35mm |
| Standard type rated holding force(N) | Standard connection 1250N,pressurized connection 3250N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HGH35CA/HGW35CA Linear Guide Clamp Brake Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic Normally Closed Clamp Video
