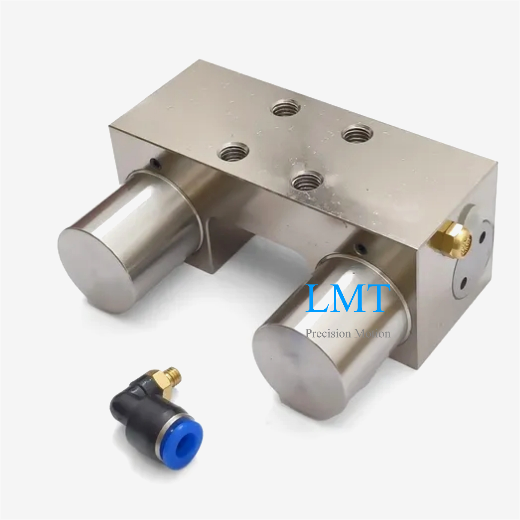

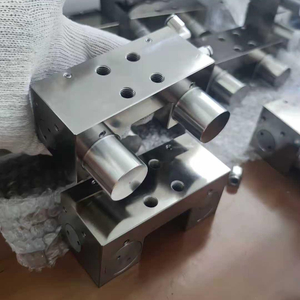

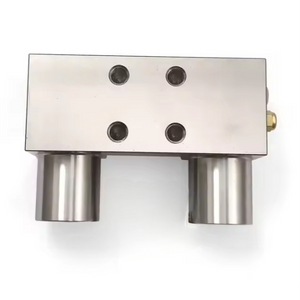

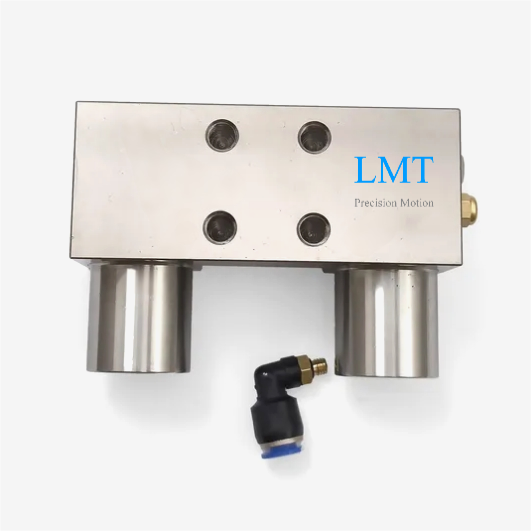

This essential safety and precision clamp securely clamps your 35mm guide rails in any position,preventing slippage and enhancing machining rigidity.Engineered as a normally closed (NC) brake,it instantly engages for fail-safe holding during power outages or air loss,eliminating dangerous drops or backdriving.Maximize accuracy and minimize vibration by integrating this robust clamping solution,designed specifically for EGH35CA and EGW35CA guides to lock your worktable securely.
Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 35mm |
| Standard type rated holding force(N) | Standard connection 1250N,pressurized connection 3250N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |

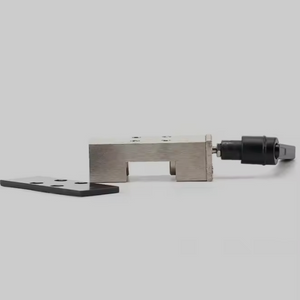

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
EGH35CA/EGW35CA Linear Guide Clamp Advantages:
Lead time:Large stock inventory.
Cost-effective: 25%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic NC Linear Rail Brake Video
