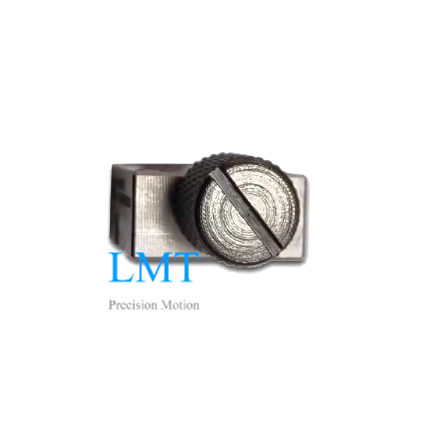

Tool-free opening and closing:By turning the knurled screw
Maintenance free:Up to 50,000 static clamping cycles
Lead time:15~20days

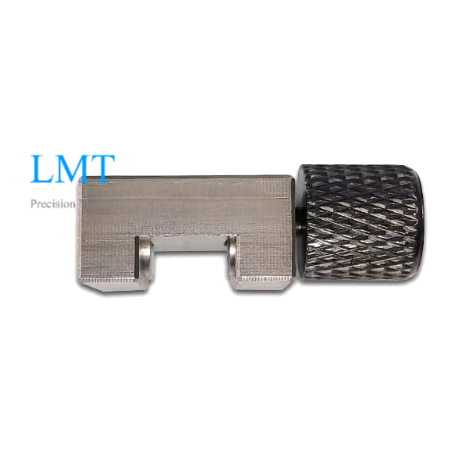

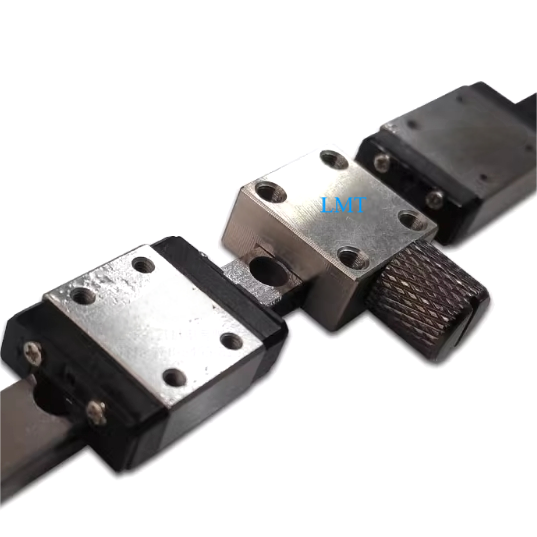

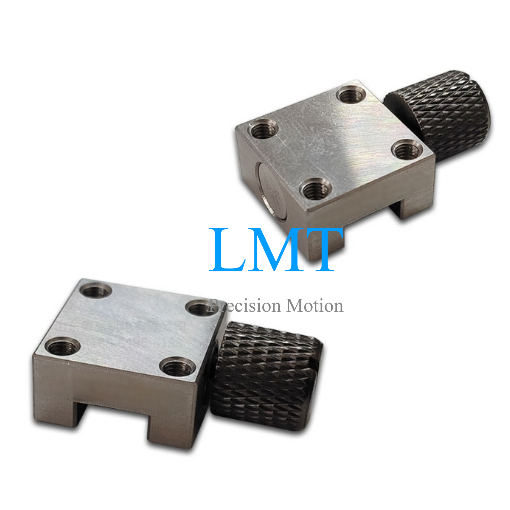

Engineered for 7mm linear guide rails,this Miniature Manual Clamp Brake delivers instant locking in compact systems.Its ultra-lightweight design features tool-free opening and closing:Simply turn the knurled screw to engage or release.Low-profile and easy to install.Achieve vibration-free stability today!
Technical Data:
| Clamp types | Manual |
| Linear guide size | 7mm |
| Holding force(N) | 65N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
7mm Manual Miniature Rail Clamp Key Advantages:
15% cost savings
The manual clamp is suitable for all common miniature profile rail guides.
The 7mm manual rail clamp mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.
Engineered for 7mm linear guide rails,this Miniature Manual Clamp Brake delivers instant locking in compact systems.Its ultra-lightweight design features tool-free opening and closing:Simply turn the knurled screw to engage or release.Low-profile and easy to install.Achieve vibration-free stability today!
Technical Data:
| Clamp types | Manual |
| Linear guide size | 7mm |
| Holding force(N) | 65N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
7mm Manual Miniature Rail Clamp Key Advantages:
15% cost savings
The manual clamp is suitable for all common miniature profile rail guides.
The 7mm manual rail clamp mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.
