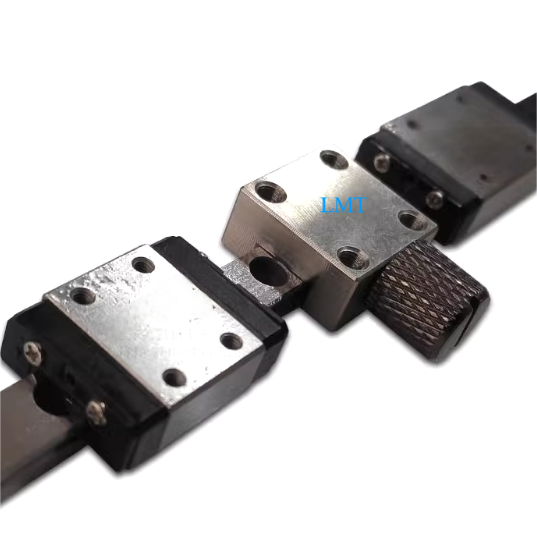

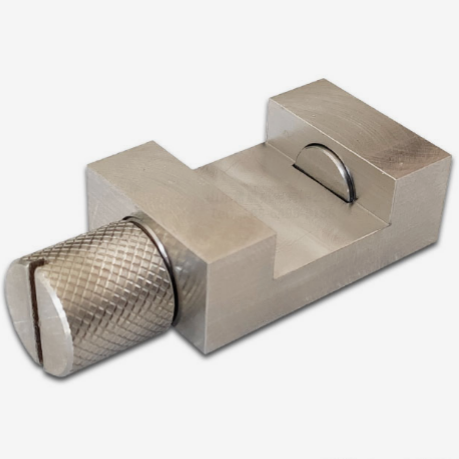

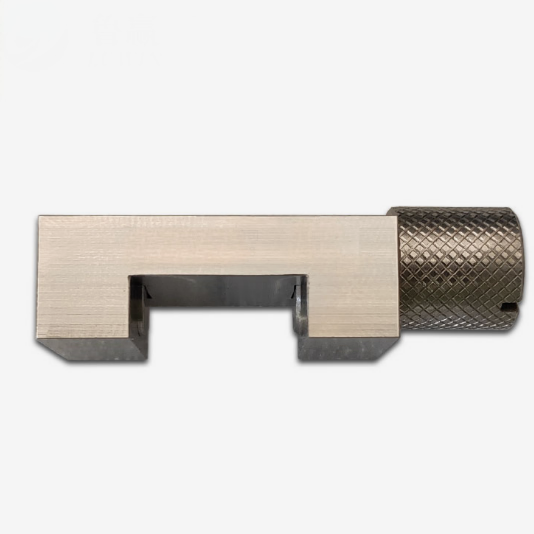

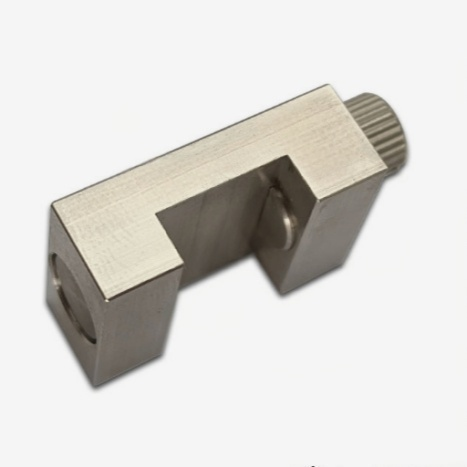

MSD Miniature Linear Guide Manual Clamp Brake

Combining clamping force and braking power,MSD Series Manual Clamp Brake rigidly locks carriage positions to eliminate drift,enhance system stiffness,and prevent hazardous movement during critical operations.Designed as a custom-fit solution,it seamlessly integrates with 7mm,9mm,12mm,15mm and 20mm linear guides — perfect for precision applications demanding zero tolerance for error.

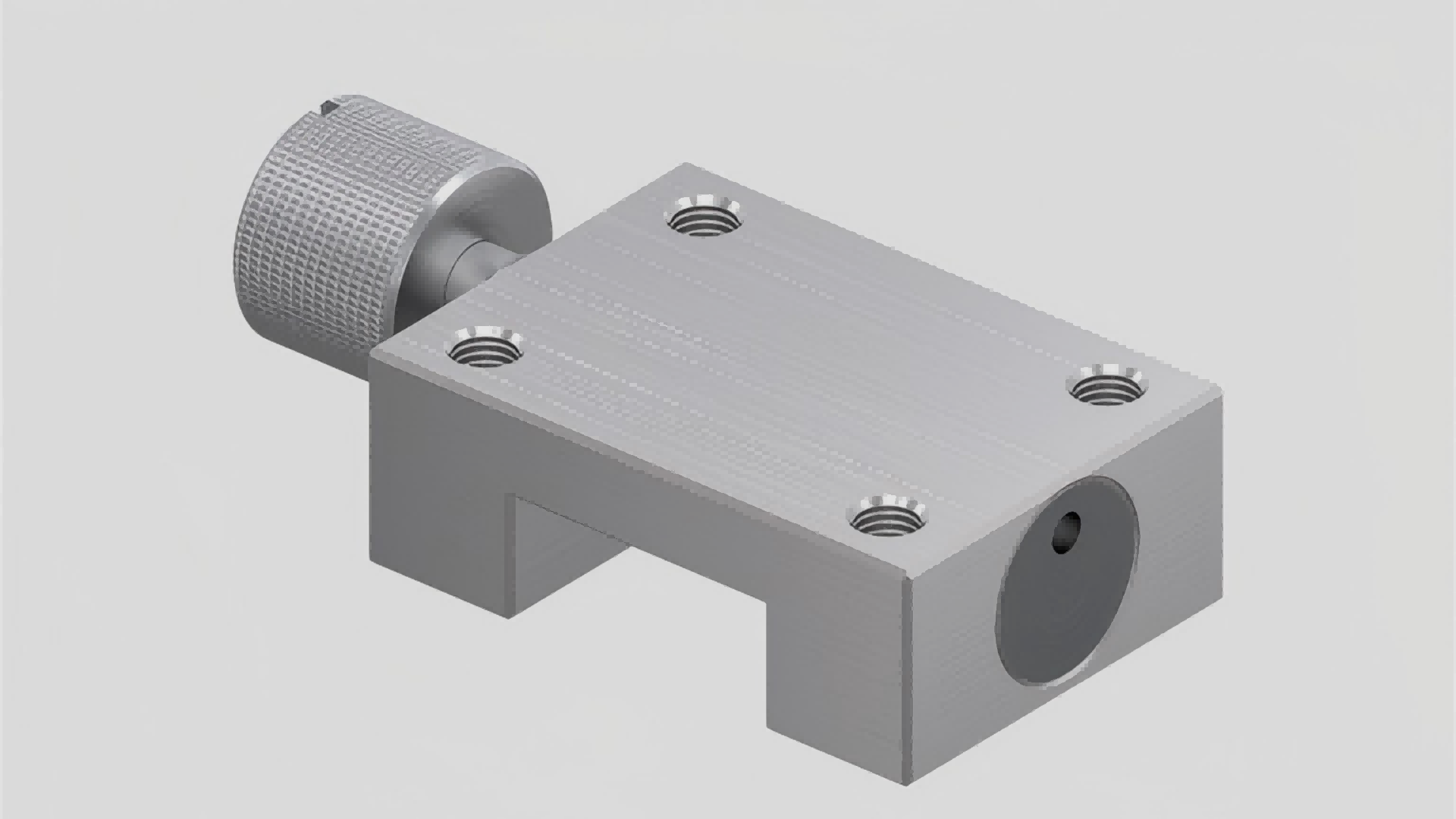

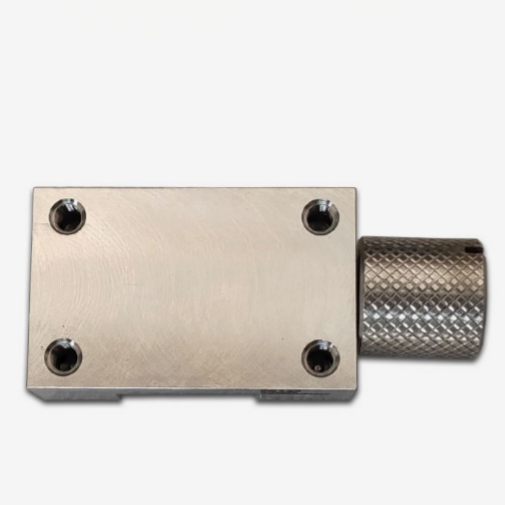

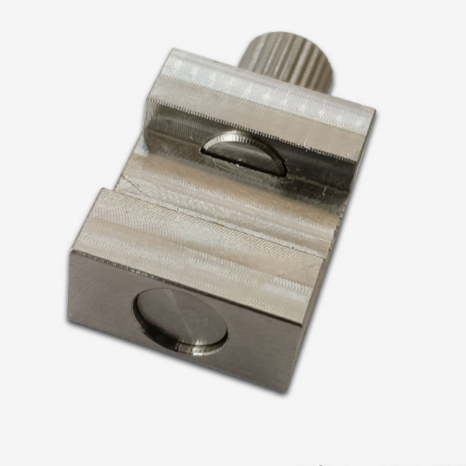

MiniSK Series manual miniature linear guide clamp brake·Small construction:For all common miniature profile rail guides

·Tool-free opening and closing:By turning the knurled screw

·Maintenance free:Up to 50,000 static clamping cycles


Mini Linear Rail Manual Clamp Dimensions & Parameters


Model

Holding force

N

Screw tightening torque

N*m

Weight

Kg

MSD0700C

65

0.11

0.01

MSD900C

100

0.17

0.02

MSD1200C

150

0.35

0.04

MSD1500C

180

0.75

0.05

MSD2000C

220

1.3

0.12

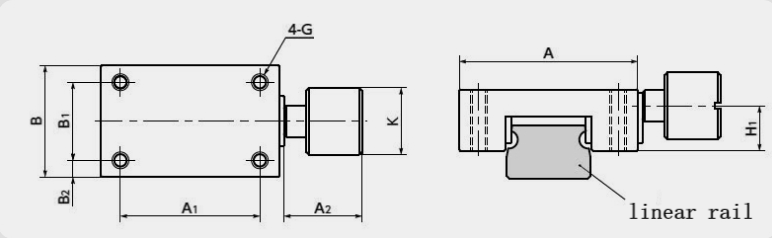

MSD mini linear guide clamp brake dimensions


Model

A

A1

A2

B

B1

B2

G

K

H1

MSD0700C

17

12

7

12

8

2

M2

6

4.3

MSD900C

20

15

9

17

11

3

M3

8

5.35

MSD1200C

27

20

10

19

13

3

M3

10

7.15

MSD1500C

32

25

14

20

14

3

M3

12

8.05

MSD2000C

46

38

14

26

19

3.5

M4

14

9.6



Miniature Linear Guide Manual Brake Key Features & Benefits


  • Vibration & Drift Elimination:Securely locks the position,effectively countering vibrations or external forces that could cause unwanted creep or drift in sensitive applications like inspection stations or optical alignment.


  • Manual Operation,Simple Integration:Easy-to-actuate manual design requires no external power source or complex controls.Simple mounting facilitates straightforward installation onto compatible guide rails.


  • Robust Construction:Built for durability and long service life using high-quality materials,ensuring consistent clamping and braking performance even in demanding industrial environments.


  • Position Locking & Process Control:Enables precise positioning and locking at any point along the rail,essential for processes requiring fixed stops,indexing,or holding workpieces firmly during machining or assembly.


Note: Custom sizing may extend lead times. Contact sales early for project planning.
