Lead time:Large stock inventory

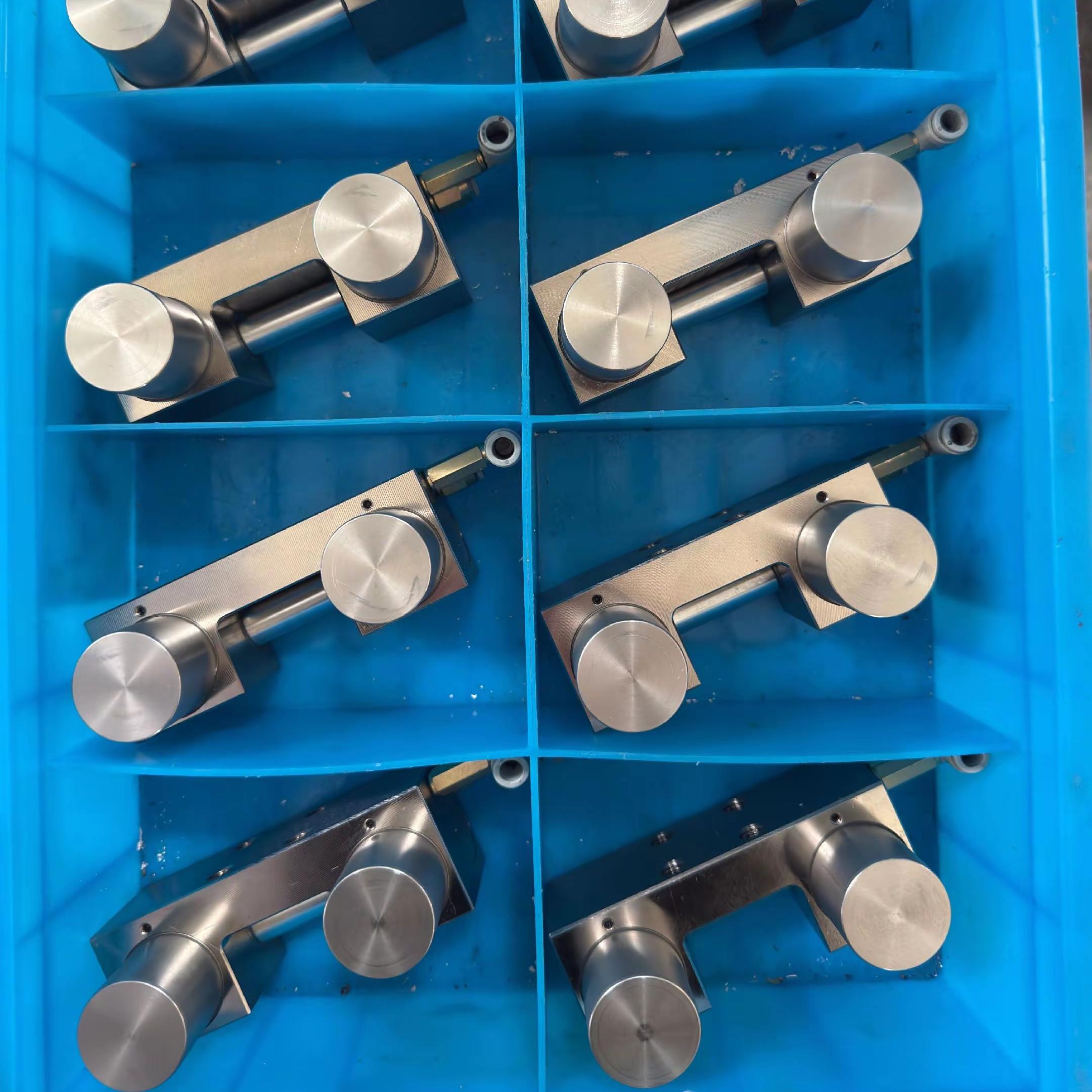

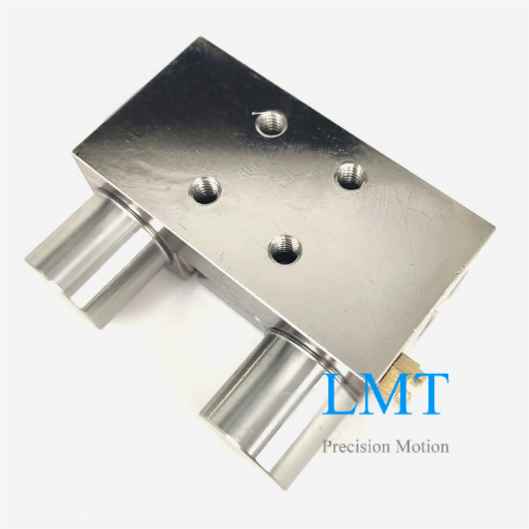

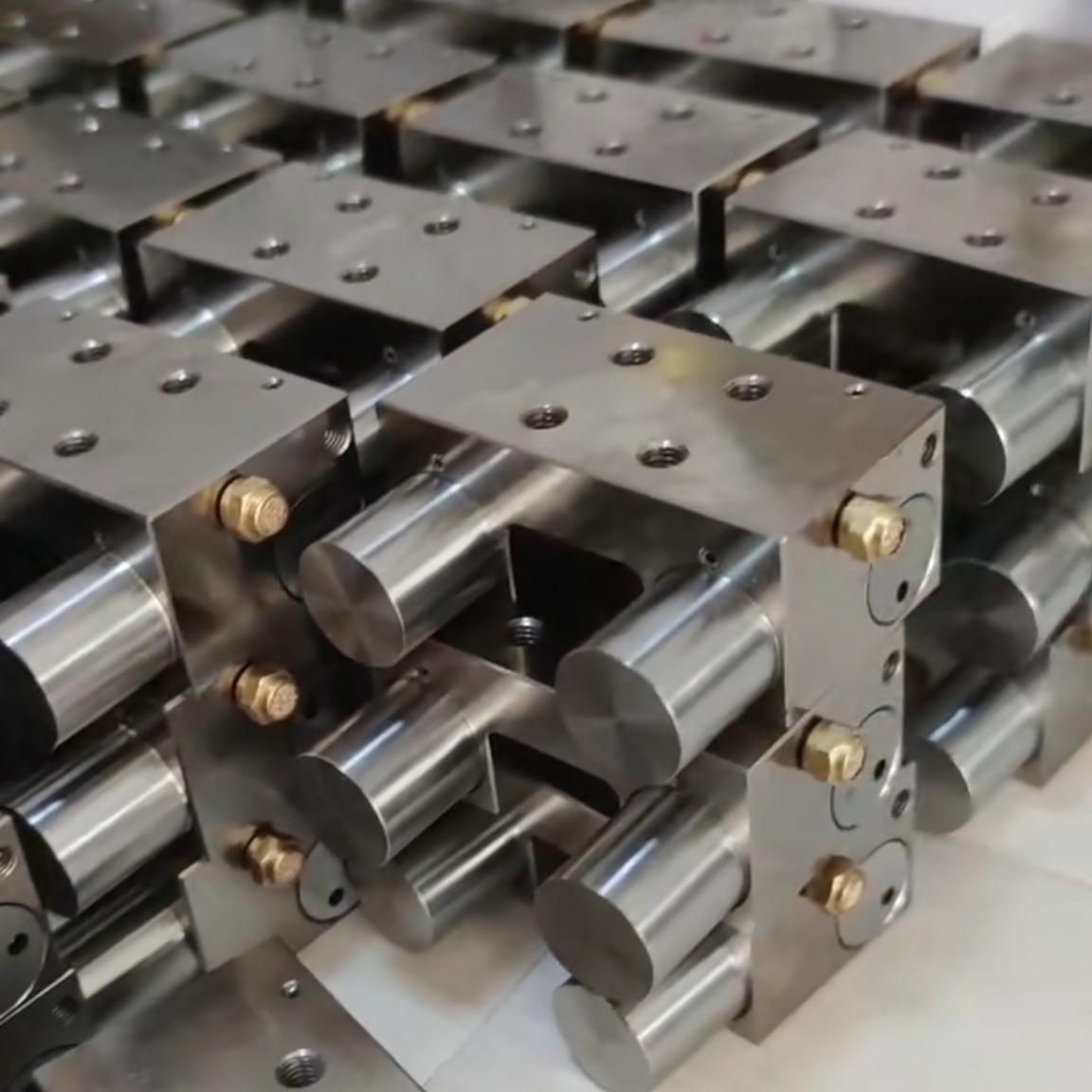

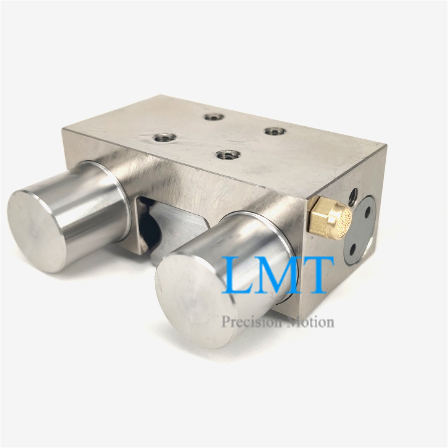

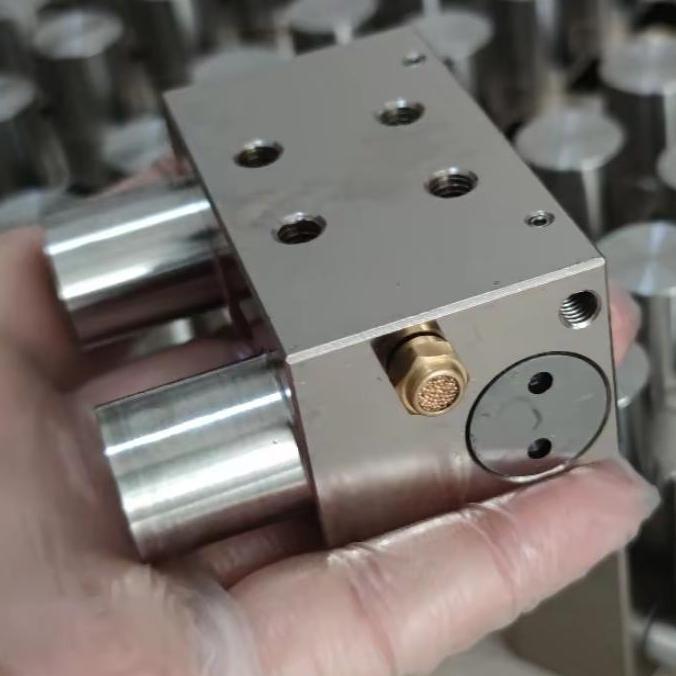

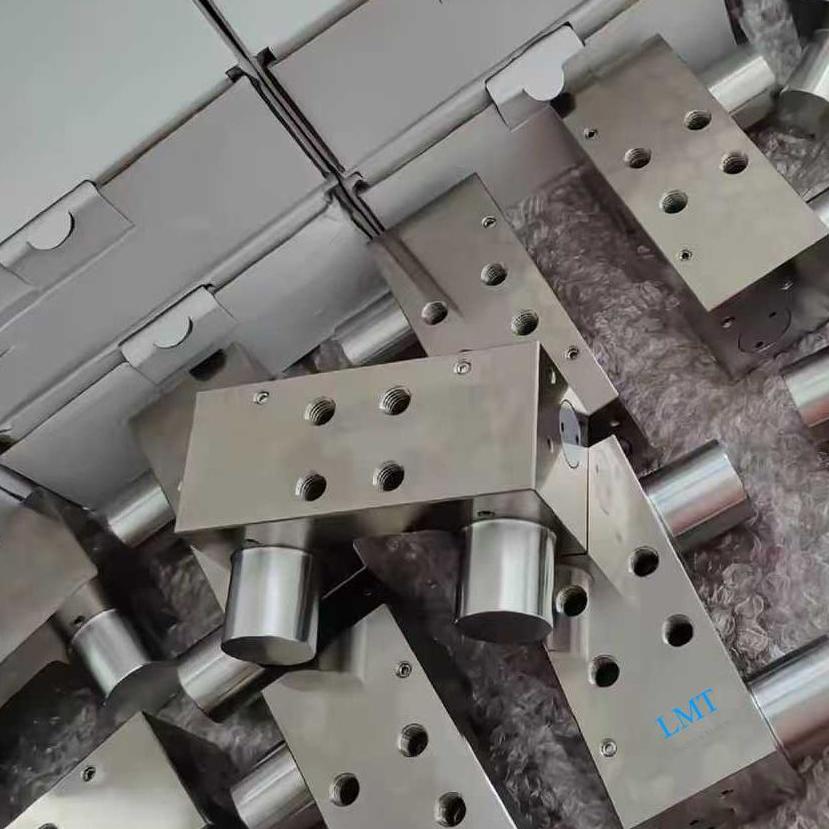

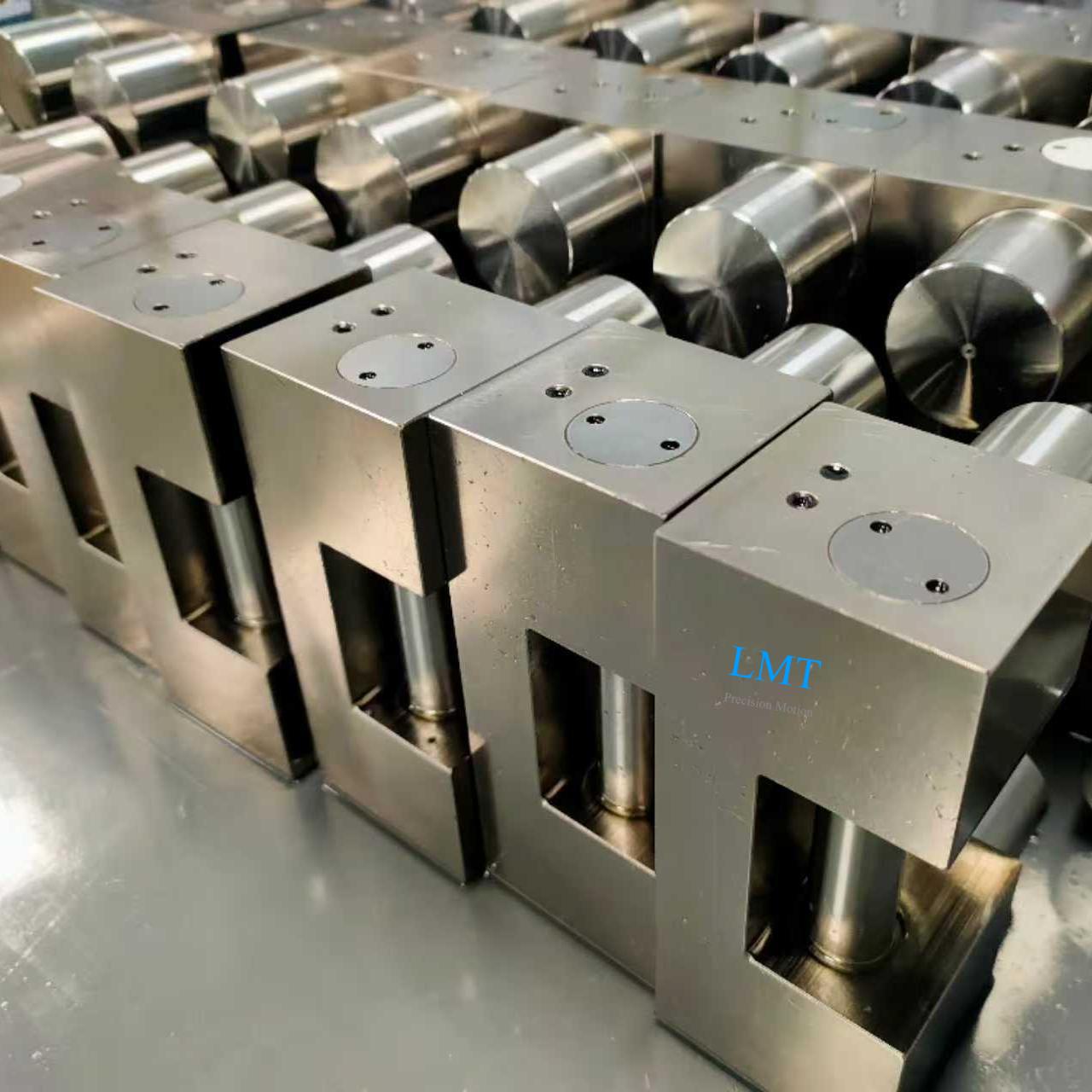

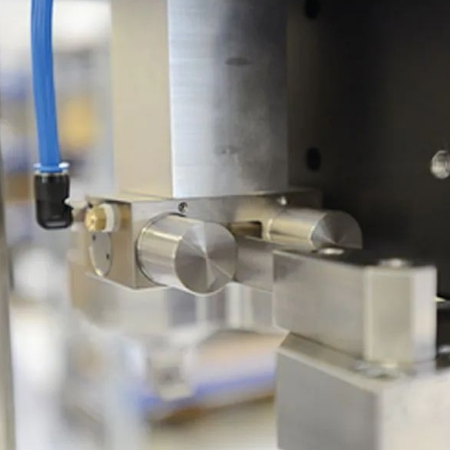

Pneumatic normally closed clamp brake engineered for PMI MSA20 linear guides(20mm size).Provides instant position locking,eliminates vibration,and boosts system rigidity.Ideal replacement for Zimmer/NBK brand MKS series guide clamps.Enhances precision in automation setups with fail-safe clamping during air loss.Compact design for easy integration.
Specification:
| Clamp types | Pneumatic normally close |
| Linear rail sizes | 20mm |
| Standard type rated holding force(N) | Standard connection 600N,pressurized connection 1300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
PMI MSA20 Linear Rail Clamp Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close (NC) Brake Video
Pneumatic normally closed clamp brake engineered for PMI MSA20 linear guides(20mm size).Provides instant position locking,eliminates vibration,and boosts system rigidity.Ideal replacement for Zimmer/NBK brand MKS series guide clamps.Enhances precision in automation setups with fail-safe clamping during air loss.Compact design for easy integration.
Specification:
| Clamp types | Pneumatic normally close |
| Linear rail sizes | 20mm |
| Standard type rated holding force(N) | Standard connection 600N,pressurized connection 1300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
PMI MSA20 Linear Rail Clamp Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close (NC) Brake Video
