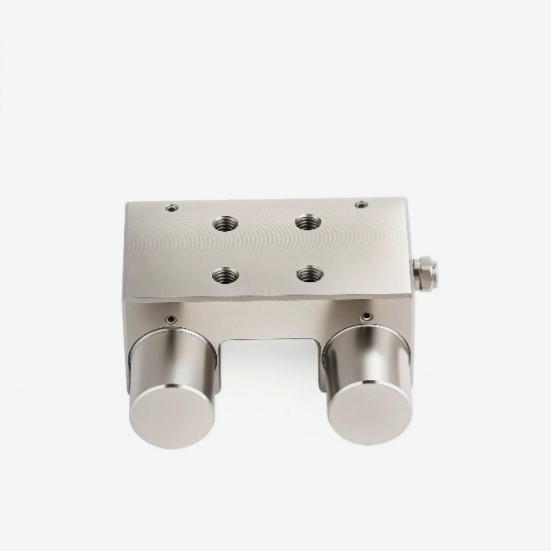

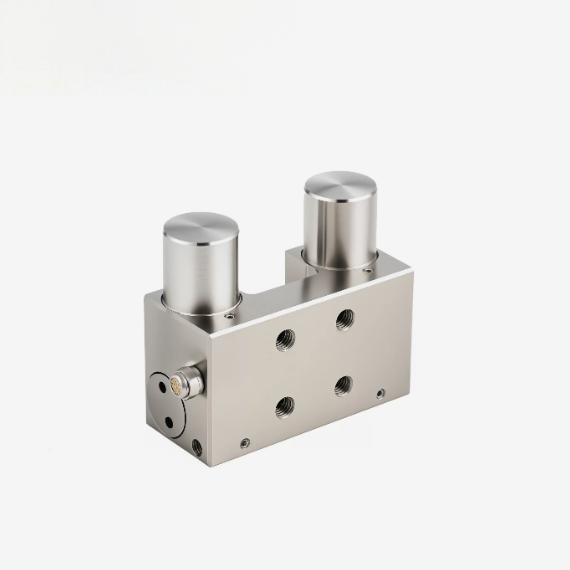

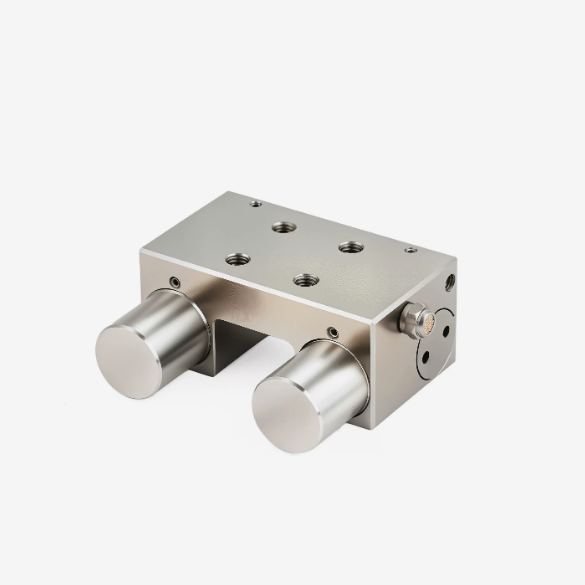

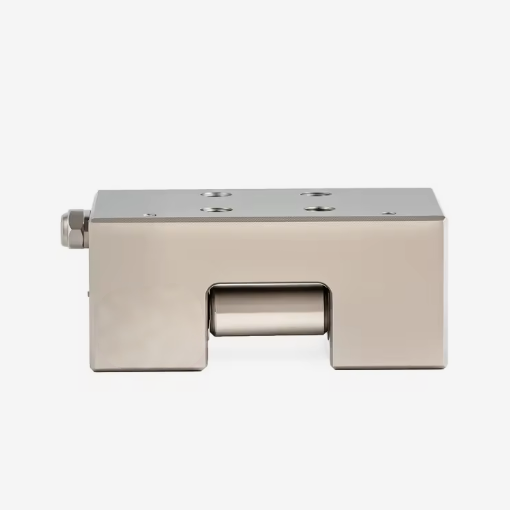

This pneumatic normally closed clamping element serves as a direct replacement for the Zimmer MKS series.It is specially designed for 20mm linear guide systems,delivering stable clamping performance and reliable fail-safe operation for industrial automation applications.
20mm Linear Guide Clamping Element Specification:
| Clamp types | Pneumatic normally close |
| Linear rail sizes | 20mm |
| Standard type rated holding force(N) | Standard connection 600N,pressurized connection 1300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA/IKO and so on |
| 2D and 3D drawing | Available |
-The surface of the pneumatic clamping element main body is nickel-plated and has good rust resistance.
-When there is air pressure,the linear rail clamp is released;when there is no air pressure,the linear guide is clamped by spring force.
-Depending on the holding force requirements of the clamping mechanism,standard connection or pressurized connection can be used.
LMT Linear Guide Clamping Element Key Advantages:
-Lead time:Large stock inventory.
-Cost-effective: 35%~50% cost savings.
-High Durability:Up to 5 million static clamping cycles.
-Broad Range of Products:For all common profile rail guides.
-Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
-Customizable Design:Tailored to meet specific application requirements.
-Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
