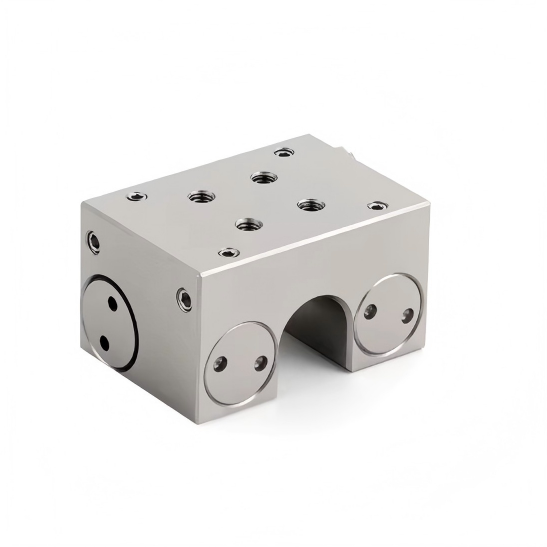

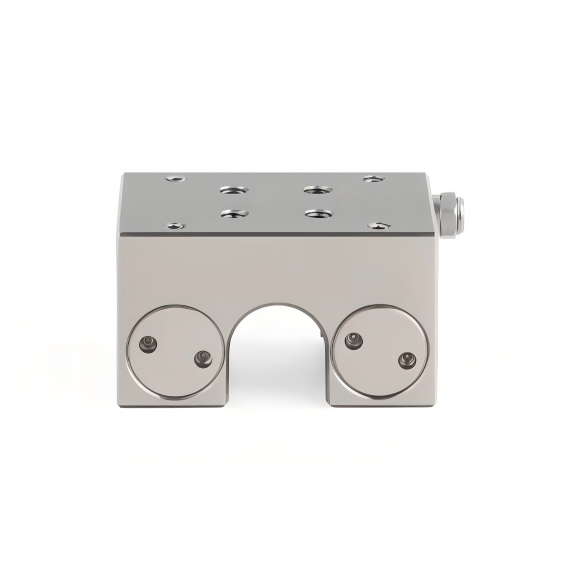

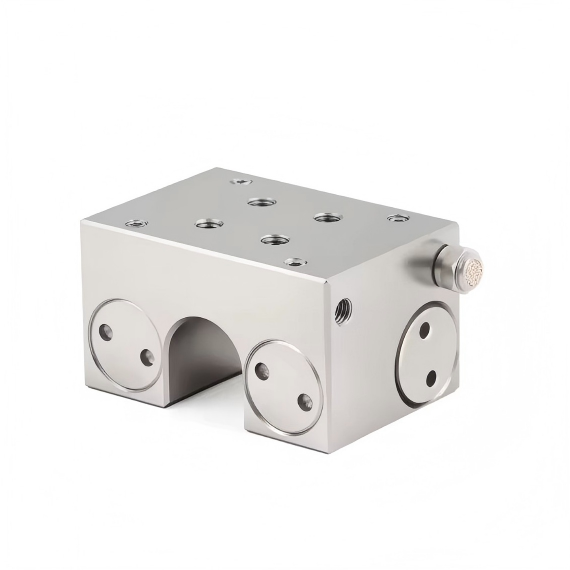

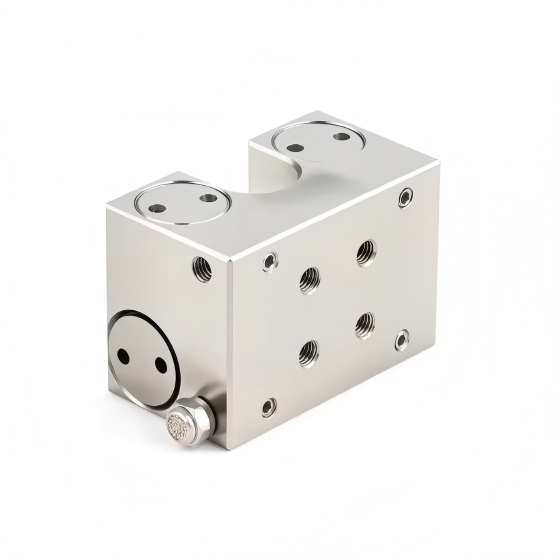

LMRK20
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||
| Clamp types | Pneumatic normally open |
| Shaft diameter | 20mm |
| Holding force(N) | 1000N |
| Working air pressure | 0.2~0.65Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |

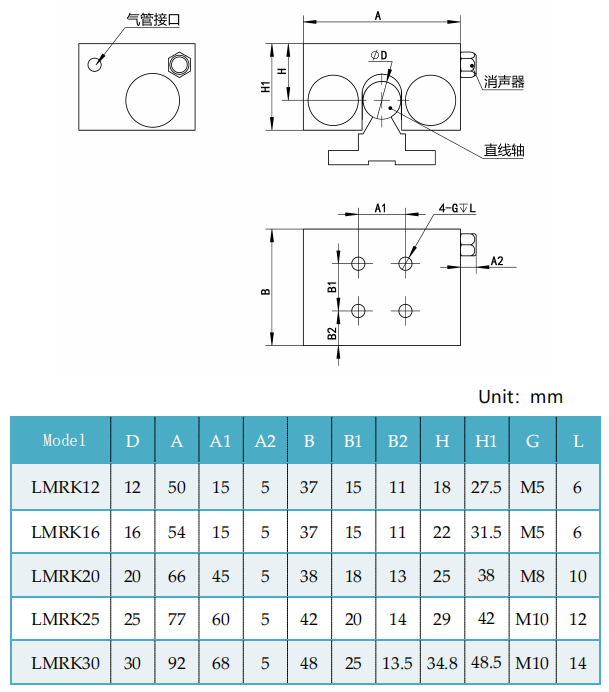

| 2D and 3D drawing | Available |
LMRK20 Round Shaft Pneumatic Normally Open Clamp.STEP
-Designed for slide table fixation,positioning and vibration suppression.
-Normally open operation.
-Clamp the linear rail when air pressure is supplied.
-Release the clamping state when air pressure is lost.
-Compatible with both linear shafts and round shafts.
20mm Round Shaft Pneumatic Normally Open Clamp Key Advantages:
-Lead Time:Large stock inventory.
-Cost-Effective: 30%~50% cost savings.
-High Durability:Up to 5 million static clamping cycles.
-Completely replace the Zimmer brand MKR series linear shaft clamping element.
-Customizable Design:Tailored to meet specific application requirements.
-Corrosion Resistance:The surface of the clamping element main body is nickel-plated and has good rust resistance.
