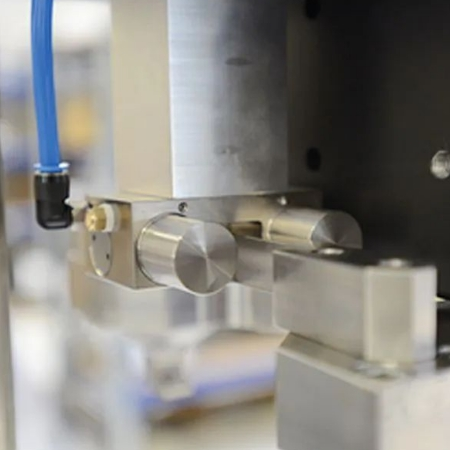

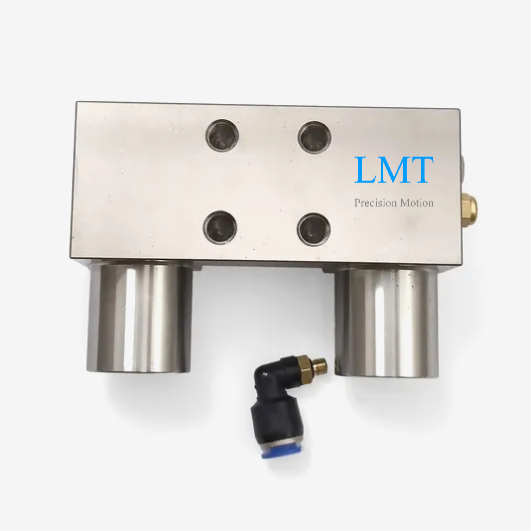

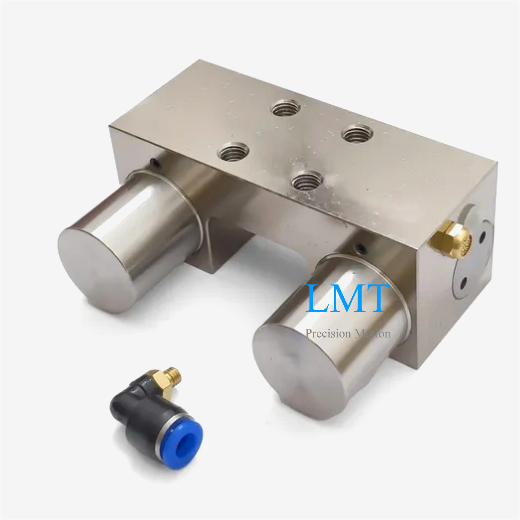

Specifically engineered for HIWIN 30mm EGH30CA and EGW30CA linear guides,this Pneumatic Normally Closed (NC) Rail Clamp securely locks workpieces in position,eliminating vibration and ensuring stability during critical operations.This robust braking solution guarantees precision positioning and uncompromised safety for demanding industrial applications.
Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 30mm |
| Standard type rated holding force(N) | Standard connection 1050N,pressurized connection 2600N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
EGH30CA/EGW30CA Linear Guide Clamp Advantages:
Lead time:Large stock inventory.
Cost-effective: 30%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic NC Rail Clamp Braking Video
