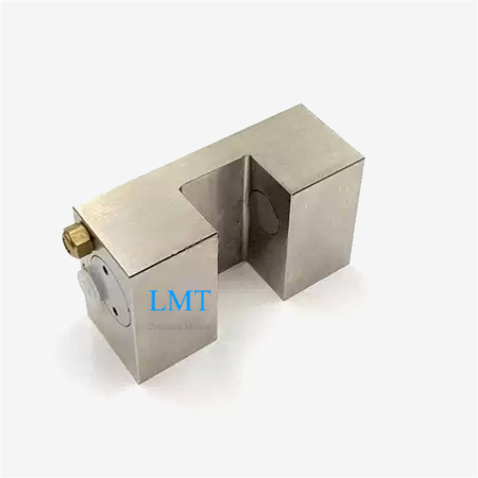

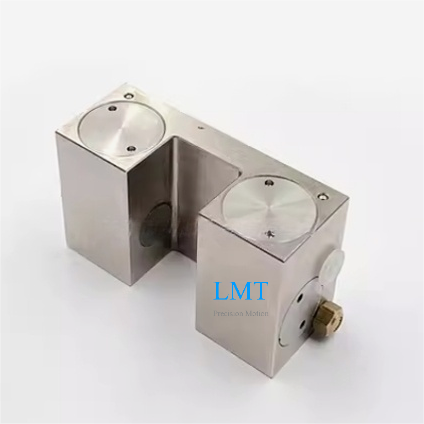

MK1501A Alternative Pneumatic Rail Clamp Fixture for 15mm Linear Guide

  • Clamp types: Pneumatic NO
  • Applicable linear guide sizes: 15mm
  • Rated holding force(N):650N
  • Lead time:Large stock inventory
  • Open air pressure:0.2~0.6Mpa
  • Applicable guideway brand:HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on
  • 2D and 3D drawing:Available

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

MK1501A Alternative Pneumatic Rail Clamp Fixture for 15mm Linear Guide


This high quality MK1501A replacement clamp engineered to prevent vibration,enhance rigidity,and ensure precise positioning on industrial machinery.Our high-performance pneumatic NO clamp delivers instant locking force on 15mm linear rails.


Specifications:


Clamp types Pneumatic normally open
Applicable guideway sizes 15mm
Rated holding force(N)
650N
Open air pressure 0.2~0.6Mpa
Clamping service life 5 million times
Material
Bearing steel with nickel-plated surface coating

Spacer plate

Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage)

Operating temperature 0 °~70 °C
Applicable guideway brand HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on
2D and 3D drawing
Available


Pneumatic 15mm Rail Clamp Fixture Advantages:


  • Fast delivery within 2 days.

  • Help you save 25%~45% of the cost.

  • High Durability,up to 5 million static clamping cycles.

  • Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamping element.

  • This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.

  • Features a durable corrosion-resistant surface coating,safeguarding against rust and wear in challenging environments,ensuring extended operational life.

  • Securely locks 15mm linear rails in position,significantly improving system stability and machining/workpiece accuracy.


Pneumatic Normally Open Clamp Product Video

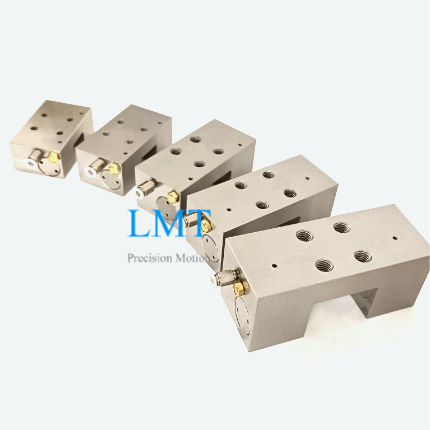

Alternative MK Series Pneumatic Normally Open Rail Clamp Fixture


Alternative MK Series Pneumatic NO Linear Rail Clamp Fixture

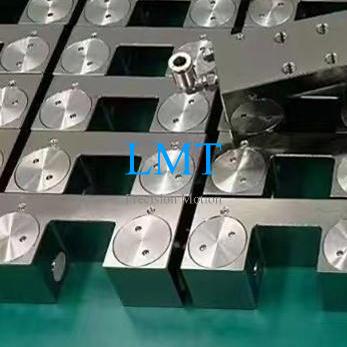

Alternative MK Series Pneumatic NO Rail Clamp Fixture

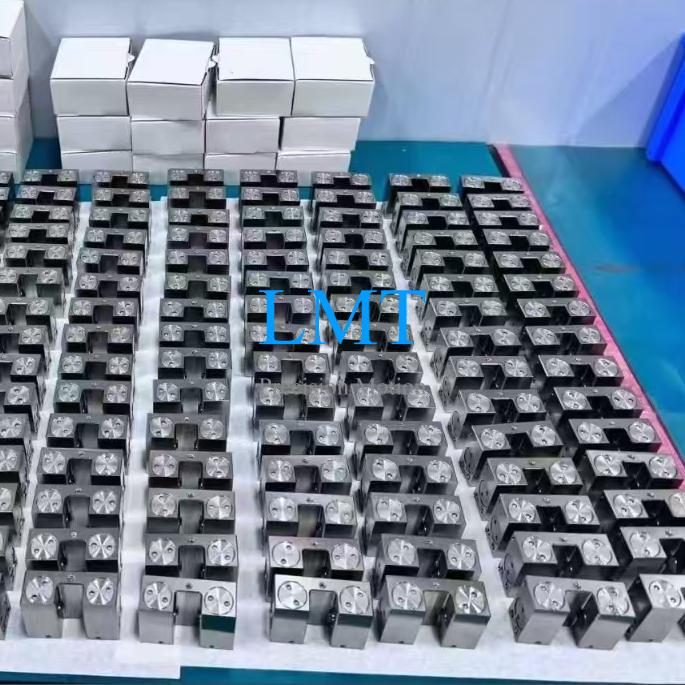

Alternative MK Series Pneumatic Rail Clamp Fixture




Structure In Section

Download LMK15B Pneumatic Normally Open Clamp Dimension
