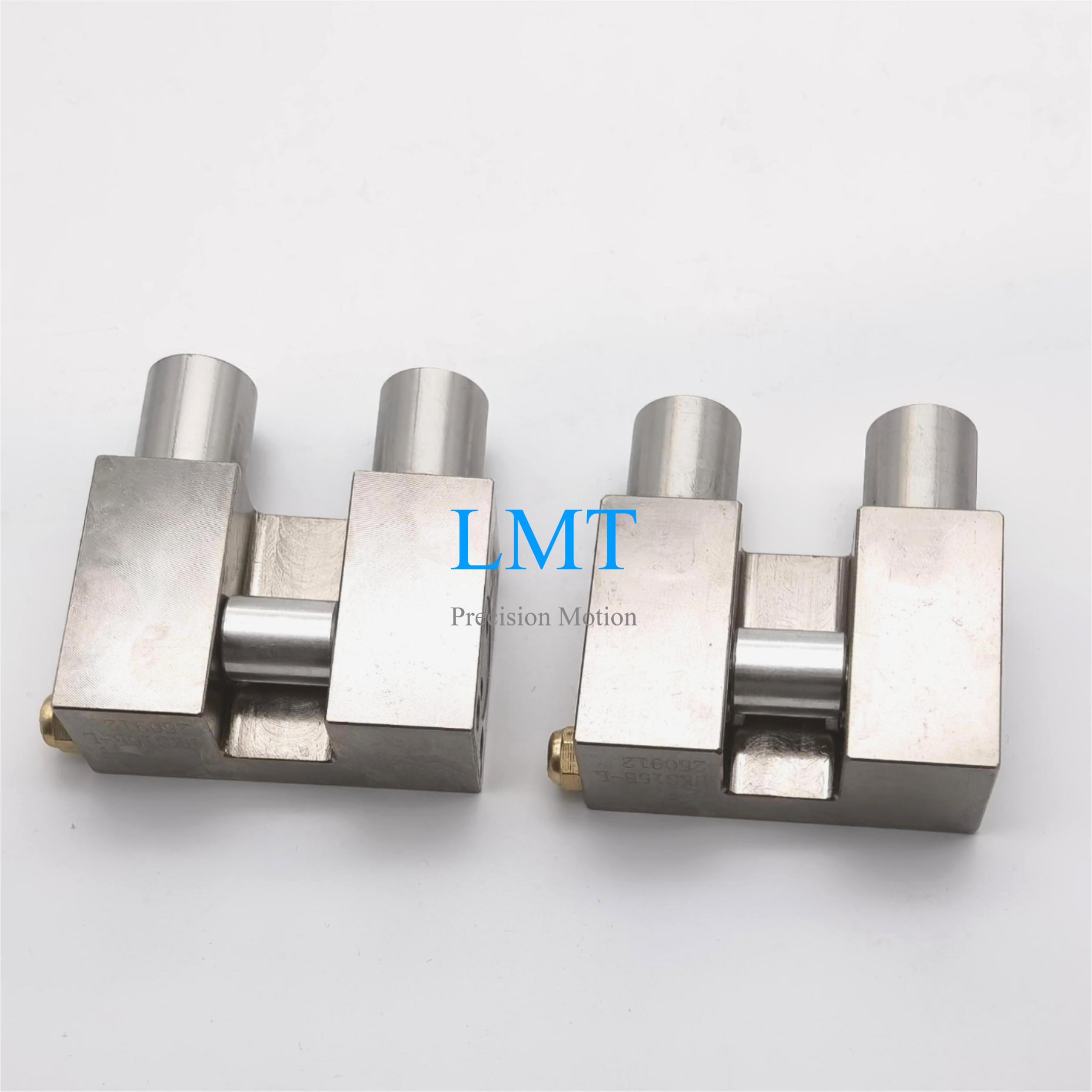

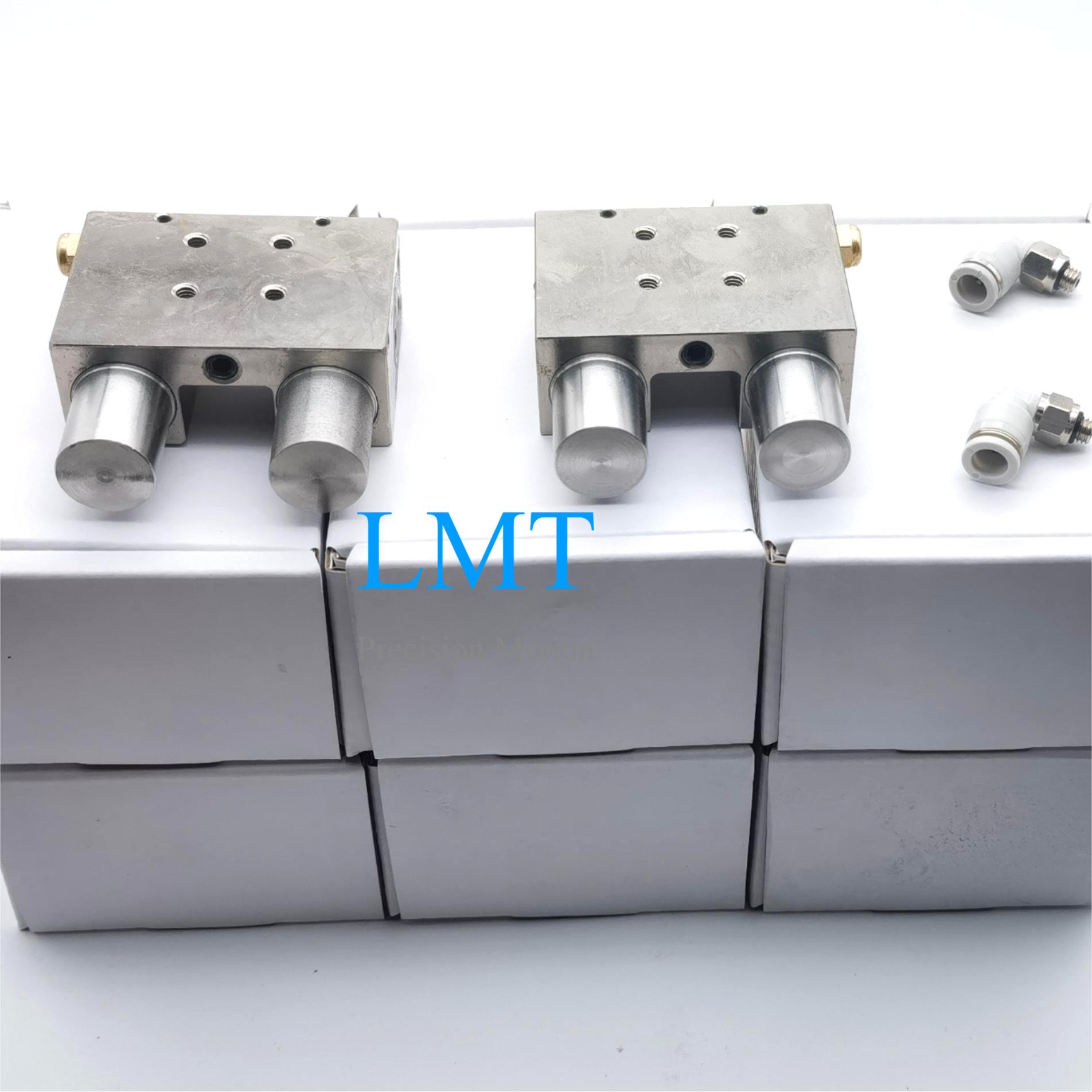

The pneumatic normally closed rail clamp braking element designed for the SHS15 THK linear guide is a specialized safety and motion control device.Its compact design allows for relatively straightforward integration onto existing systems without needing major modifications like extending the rail or changing the table size.This type of braking element is critically important in applications requiring emergency stopping,safety positioning,and prevention of unintended movemen.
Linear Guide Clamp Braking Specification:
| Clamp types | Pneumatic normally close |
| Linear rail sizes | 15mm |
| Standard type rated holding force(N) | Standard connection 400N,pressurized connection 1050N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |

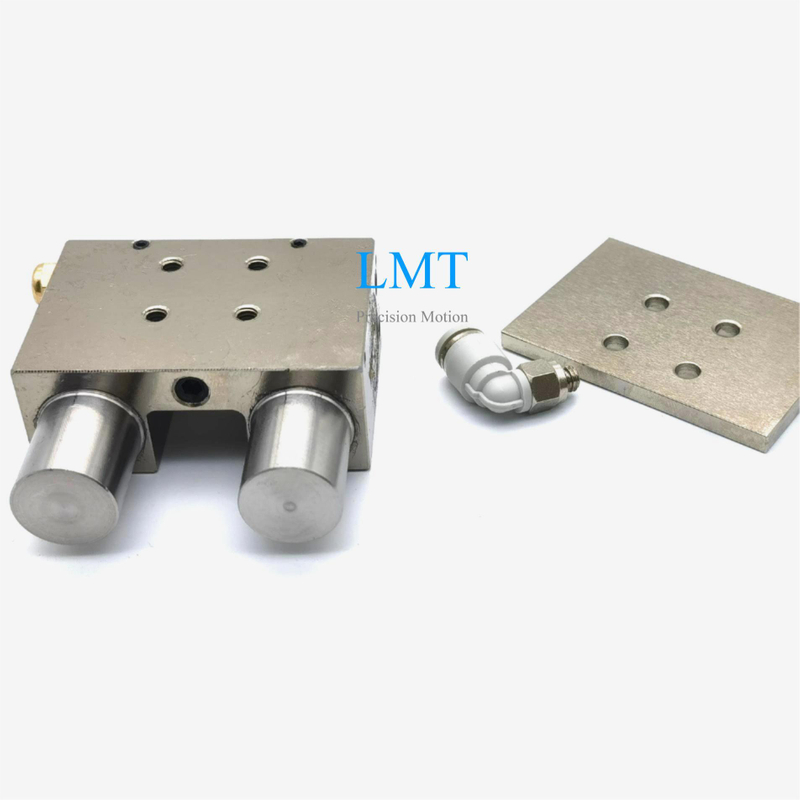

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
SHS15 THK Linear Guide Clamp Braking Key Advantages:
Lead Time:Large stock inventory.
Cost-effective: 25%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamping element main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close(NC) Clamp Video
