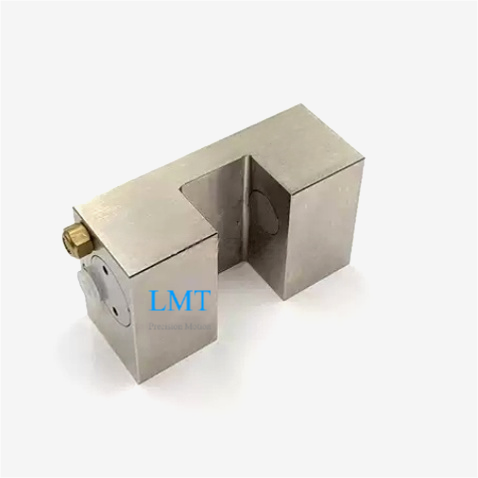

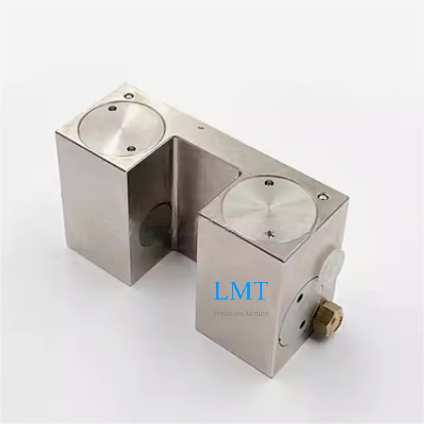

Pneumatic Normally Open Clamp Fixture for 20mm Linear Guide
Engineered to eliminate vibration,boost rigidity,and lock positions with precision on industrial machinery.This heavy-duty pneumatic normally open clamp delivers instant force on 20mm linear rails,replacing manual fixtures with automated reliability.Compatible with major 20mm guide brands(e.g., HIWIN,THK,PMI,NSK).
Specifications:
Clamp types | Pneumatic normally open |
Linear guide sizes | 20mm |
Rated holding force(N) | 1000N |
Open air pressure | 0.2~0.6Mpa |
Clamping service life | 5 million times |
Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
Operating temperature | 0 °~70 °C |
Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
2D and 3D drawing | Available |
20mm Linear Rail Pneumatic NO Clamp Fixture Advantages:
Fast delivery within 3 days.
Help you save 25%~45% of the cost.
High Durability,up to 5 million static clamping cycles.
Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamp.
This rail clamping fixture is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Pneumatic Normally Open Clamp Product Video
