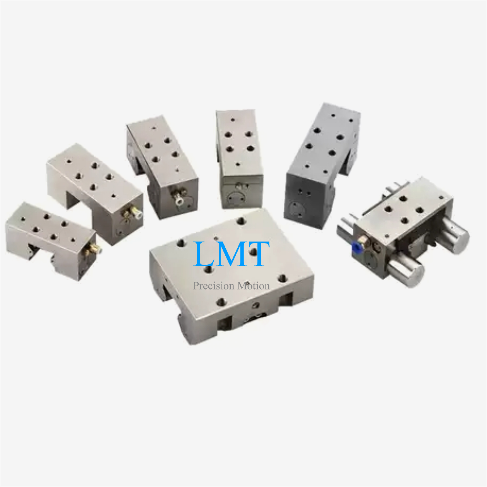

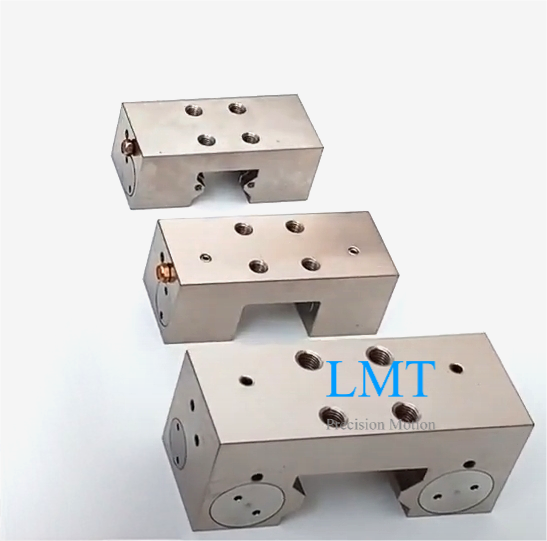

Pneumatic Normally Open Clamp Fixture for HGH30 HGW30 Linear Guides
Designed specifically for HIWIN's 30mm HGH and HGW series linear guide,this robust pneumatic NO clamp automatically secures the carriage block,providing critical vibration damping and enhanced rigidity during machining or high load operations.
Specifications：
| Clamp types | Pneumatic normally open |
| Linear guide sizes | 30mm |
| Rated holding force(N) | 1750N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HGH30 HGW30 Pneumatic Rail Clamp Fixture Advantages:
Fast delivery within 2 days.
Help you save 25%~45% of the cost.
Direct replacement for Zimmer and NBK brand MK series pneumatic normally open clamp.
High durability,up to 5 million static clamping cycles.
This rail clamp is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
