Lead time:Large stock inventory

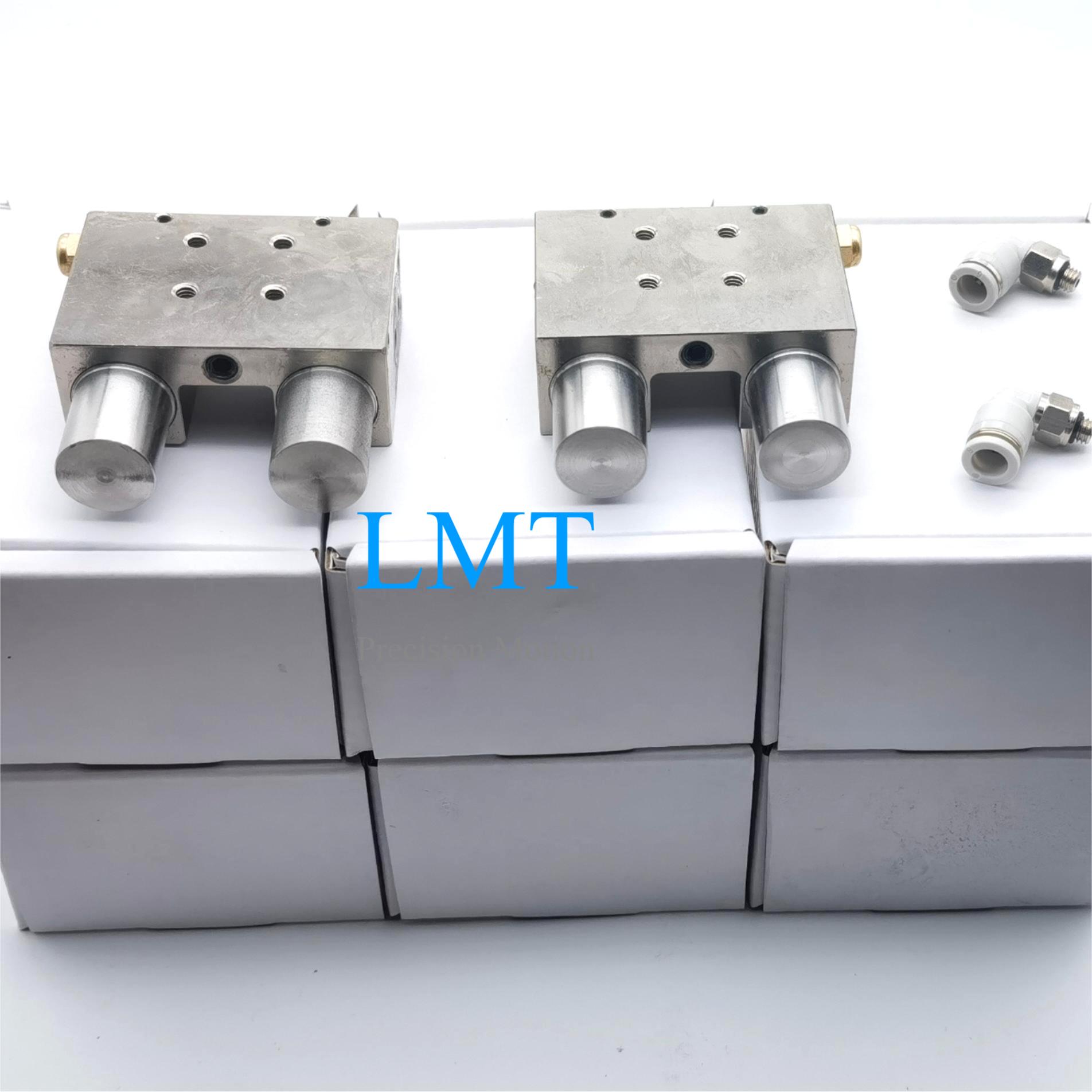

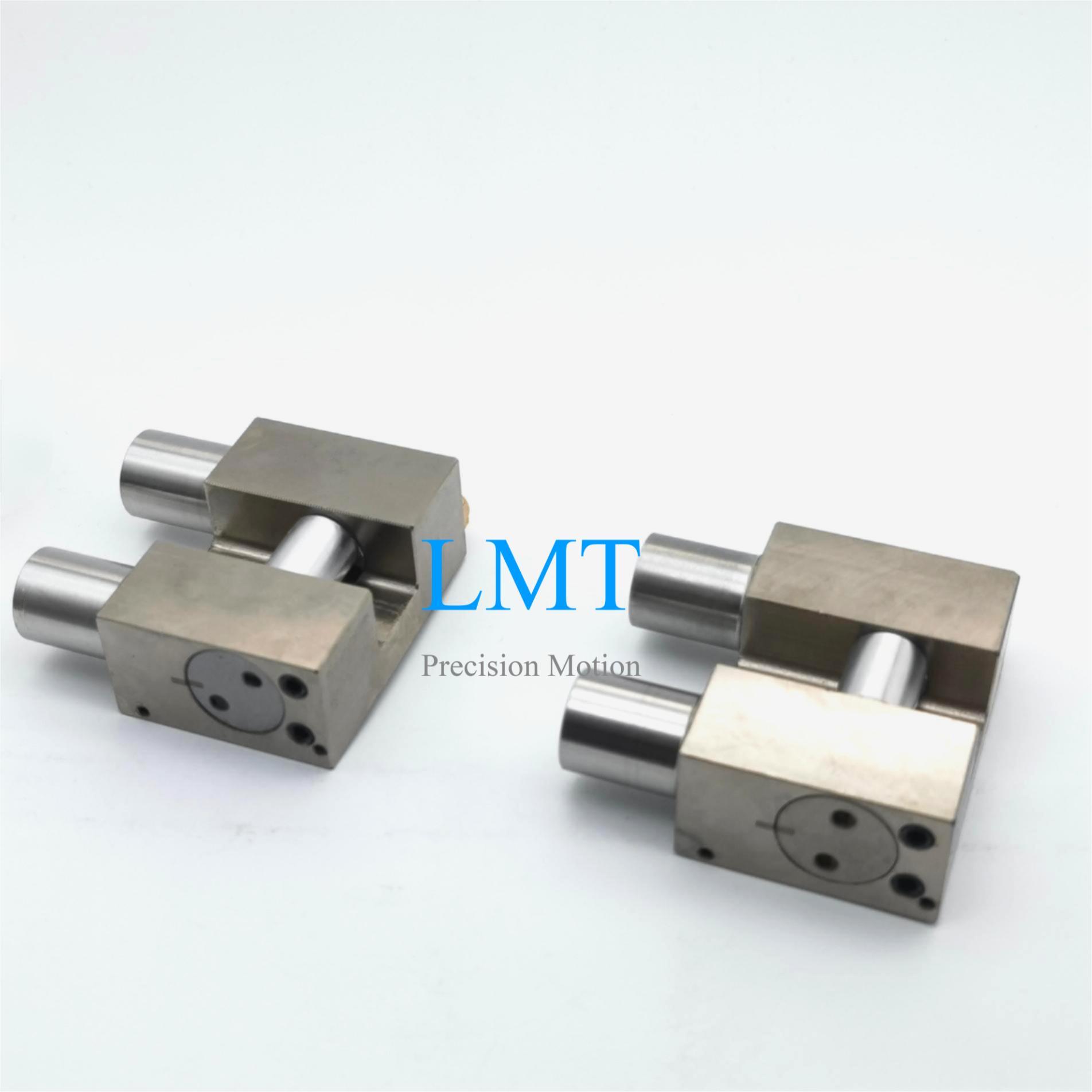

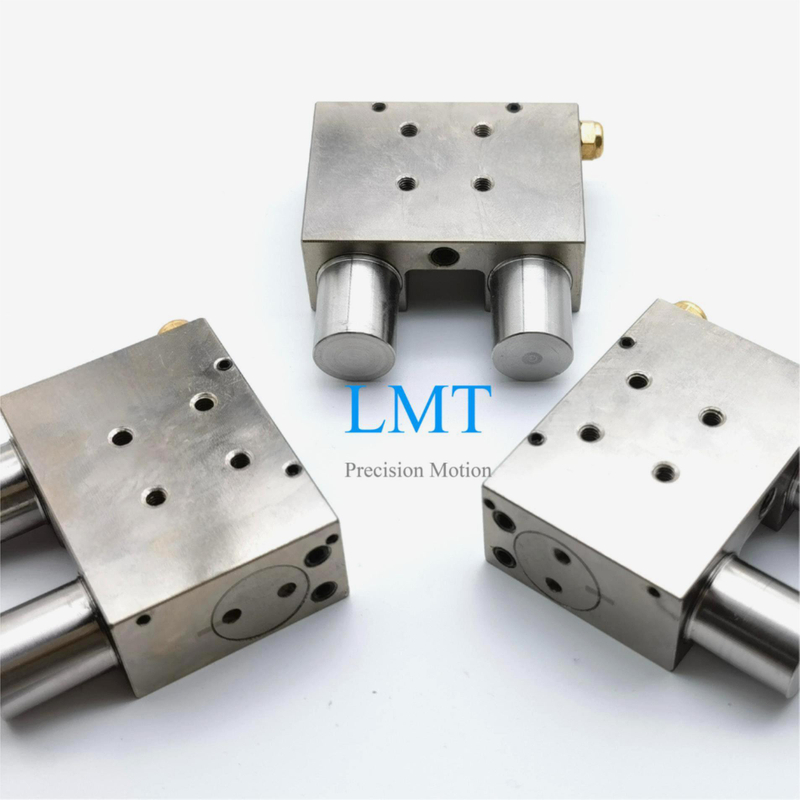

This 20mm rail clamp brake is a spring-applied,pneumatically released mechanism specifically designed for use with THK SHS20 linear guides.Compressed air is required to disengage the brake and allow free movement of the linear guide.Its compact design allows for relatively straightforward integration onto existing systems without needing modifications like extending the rail or changing the table size.
20mm Linear Guide Clamp Braking Specification:
| Clamp types | Pneumatic normally close |
| Linear rail sizes | 20mm |
| Standard type rated holding force(N) | Standard connection 600N,pressurized connection 1300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
SHS20 Linear Guide Clamp Braking Element Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close (NC) Brake Video
