LMK-R series pneumatic normally open clamping elements are specially engineered for roller linear guides,perfectly compatible with most mainstream roller linear rail sizes from 25mm to 65mm.We maintain abundant in-stock supply to support fast delivery globally,helping you cut overall procurement costs by 50%~70% without compromising performance and reliability.

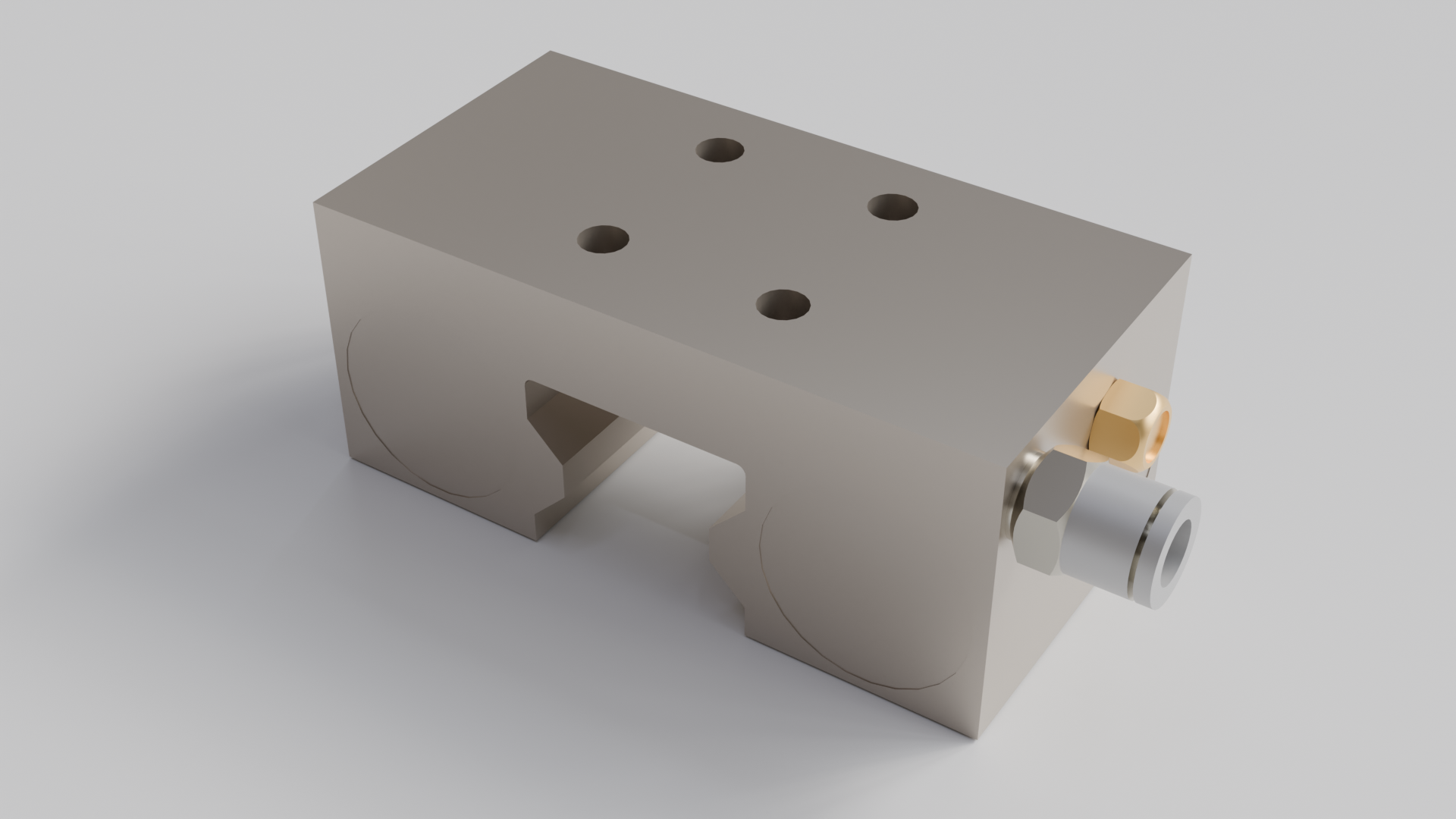

LMK-R Series Roller Linear Guide Clamping Element Core Features
-The structure is compact and the holding force is strong.
-Precise positioning, suitable for pneumatic clamping of moving axes.
-Through principle of wedge block expansion,air pressure is used to achieve clamping.
-Easy to install,directly connected to the workbench,no need to change workbench size.
LMK-R Series Pneumatic Normally Open Clamp Working Parameters
Working pressure | 0.2~0.6MPa |
Response time | ≤0.06 s |
Use temperature | 0℃~70℃ |
Clamping Service life | 5 million times |
LMK-R Series Pneumatic NO Clamp Rated Holding Force and Air consumption
Model Rated holding force(N) Air consumption (ℓ/cycle（ANR））
LMK25R 1200N 0.021
LMK30R 1750N 0.03
LMK35R 2000N 0.03
LMK45R 2250N 0.04
LMK55R 3000N 0.04
LMK65R 3000N 0.07
Note: The data in the table are values at 0.6MPa air pressure. The holding force is proportional to the air pressure within the working pressure range.

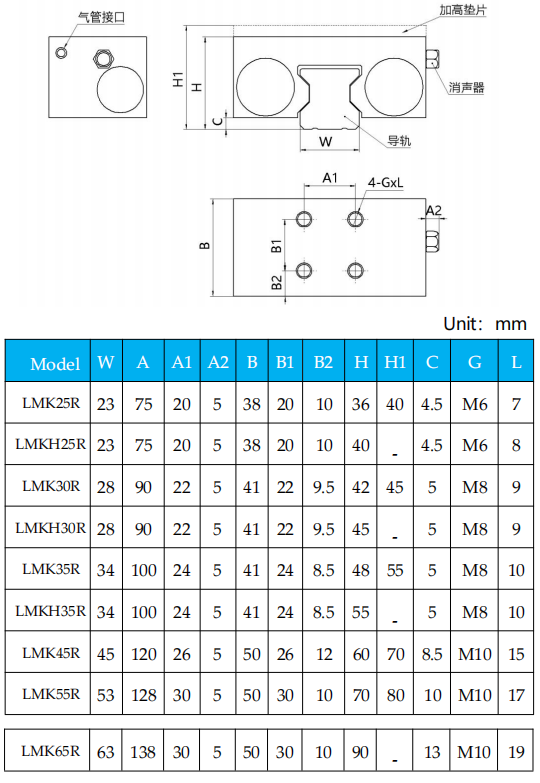

LMK-R Series Pneumatic Normally Open Clamp 2D & 3D Dimensions Download
LMK25R Roller Pneumatic Normally Open.STEP
LMK30R Roller Pneumatic Normally Open.STEP
LMK35R Roller Pneumatic Normally Open.STEP
LMK45R Roller Pneumatic Normally Open.STEP
LMK55R Roller Pneumatic Normally Open.STEP
Pneumatic Normally Open Rail Clamp Advantages:
-Lead Time:Large stock inventory.
-Cost-Effective: 50%~70% cost savings.
-High Durability:Up to 5 million static clamping cycles.
-Broad Range of Products:For all common profile rail guides.
-Completely replace the Zimmer or NBK brand MK series linear guide clamp.
-Customizable Design:Tailored to meet specific application requirements.
-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.
-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.
-Superior Material:We use 42CrMo alloy steel for the clamp's main body,while most other Chinese suppliers use C45 steel.Our clamps offer higher strength,better wear resistance and longer service life.
-Corrosion Resistance:We use electroless sandblasting nickel plating,which provides excellent anti-rust and anti-corrosion performance,a premium appearance,and resistance to scratching or peeling after long-term use.
