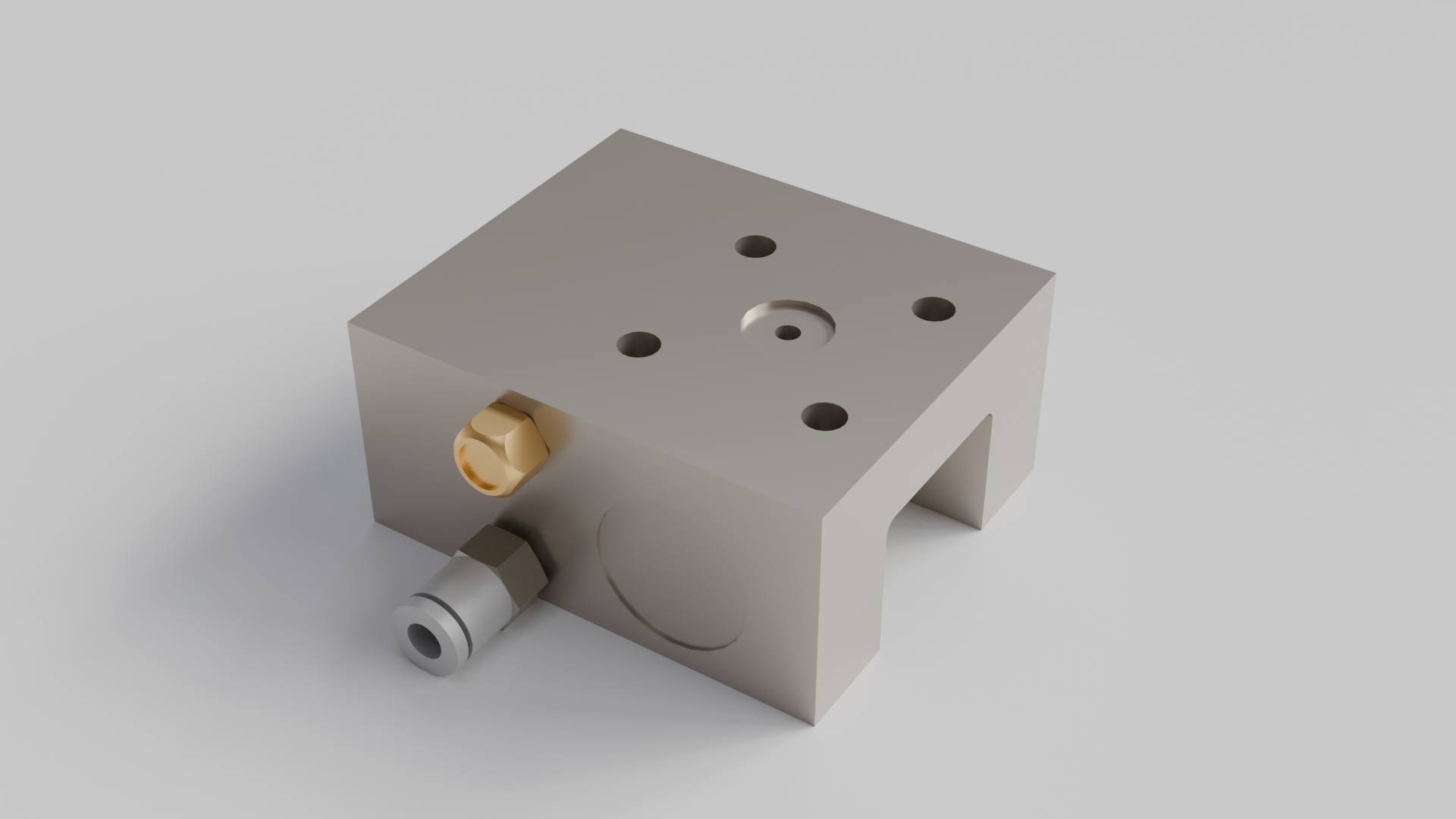

It features a slim profile,designed for slide carriage fixing,positioning and anti-vibration.This is a Normally Open type clamp:it clamps the linear guide when air pressure is supplied and releases when air pressure is exhausted.
With its compact construction,it can be easily assembled to existing systems without any design changes like extending rail length or modifying slide carriage sizes.
Clamp working parameters
Working pressure | 0.2~0.6MPa |
Response time | ≤0.06 s |
Use temperature | 0℃~70℃ |
Clamping Service life | 5 million times |
Note:The data may differ due to different working conditions during actual use.
Rated holding force and air consumption
Model Rated holding force(N) Air consumption (ℓ/cycle（ANR））
LMLK20B 850N 0.04
LMLK25B 1100N 0.055
Note: The data in the table are values at 0.6MPa air pressure. The holding force is proportional to the air pressure within the working pressure range.
