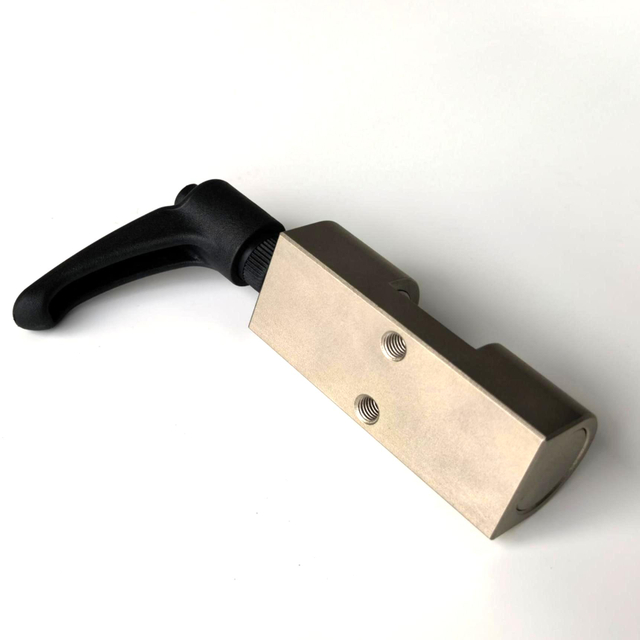

This LKL series manual linear guide clamp is manually operated by tightening the handle to firmly clamp the linear rail. It functions to lock the sliding carriage in position, achieve precise positioning and resist vibration during equipment operation.Featuring compact structure,lightweight design and easy assembly onto existing mechanical systems, this manual clamping unit can effectively cut your procurement and application costs by 50% to 70%.

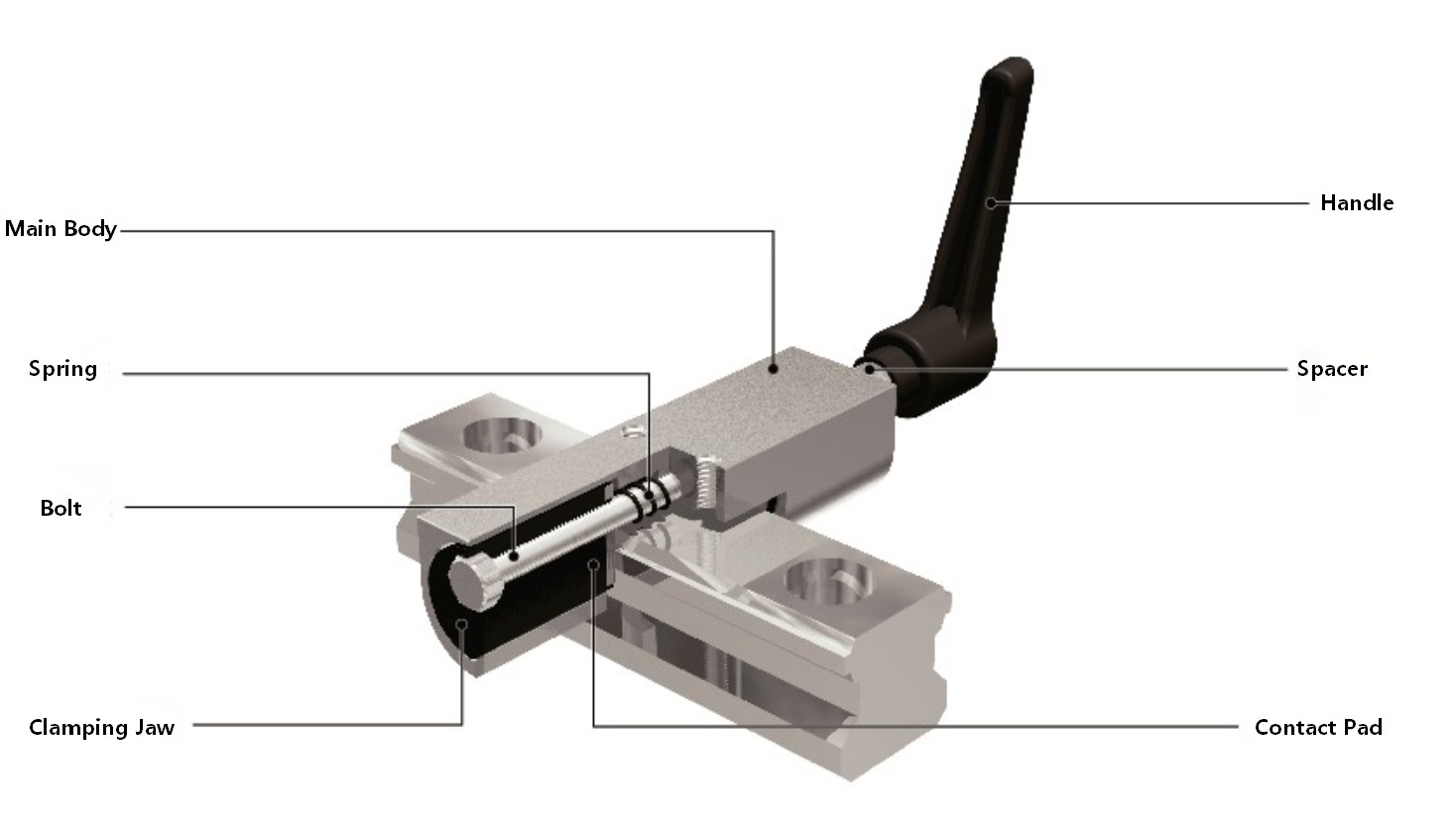

LKL Series Linear Guide Manual Clamping Element Structure

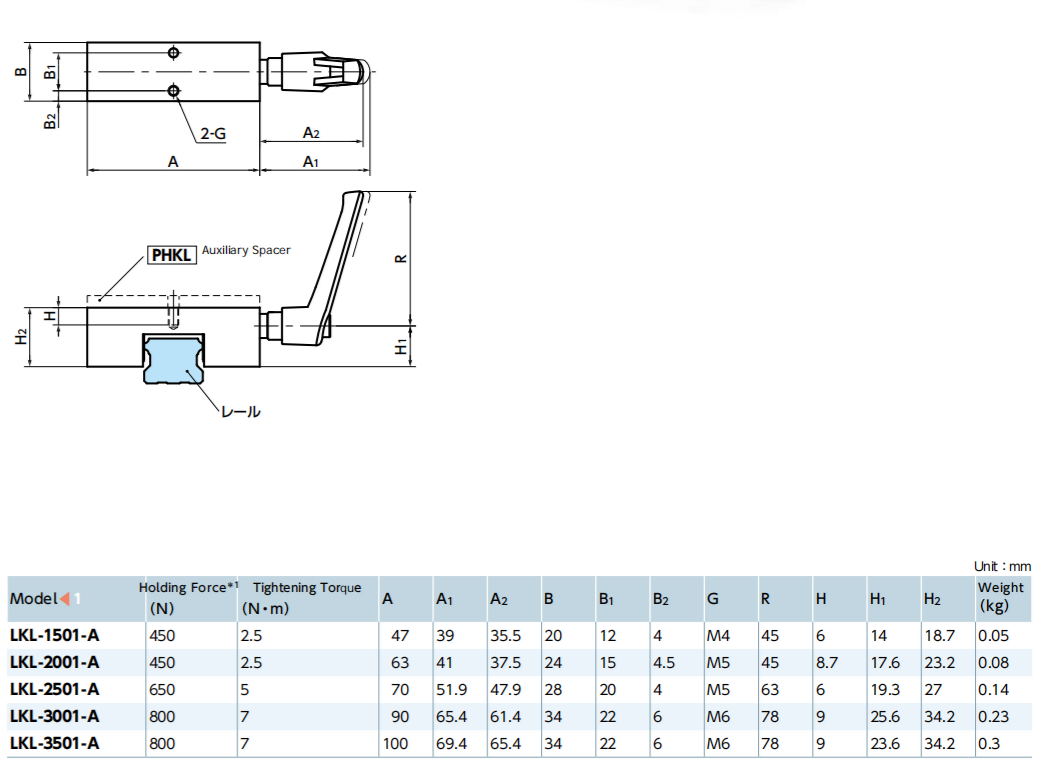

LKL Series Linear Guide Manual Clamping Element Dimensions

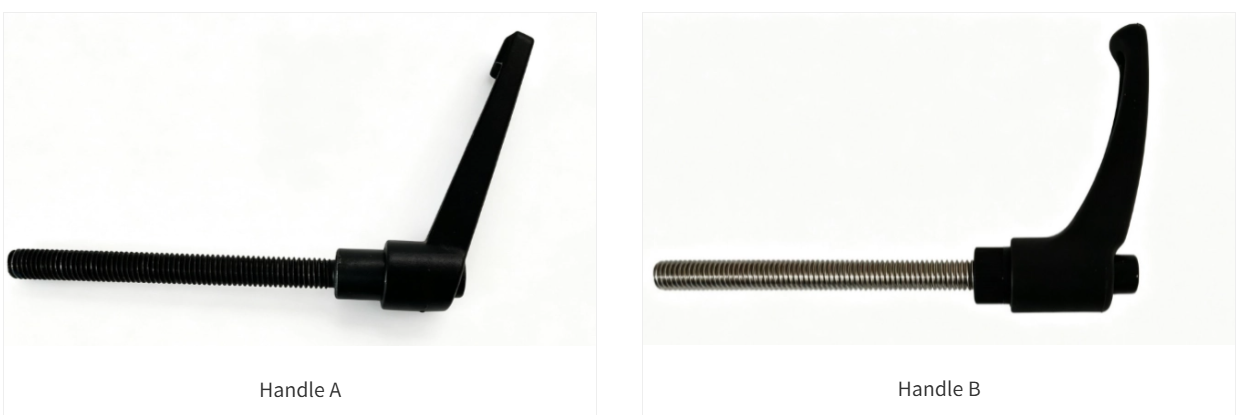

Various Handles Available,Select Suitable One While Ordering

LMT Linear Guide Manual Clamp Key Advantages:

-Lead Time:7days.

-Cost-Effective: 50%~70% cost savings.

-High Durability:Up to 50000 static clamping cycles.

-Customizable Design:Tailored to meet specific application requirements.

-Superior Material:All clamping elements are made from premium raw materials with material test certificates.

-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.

-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.
