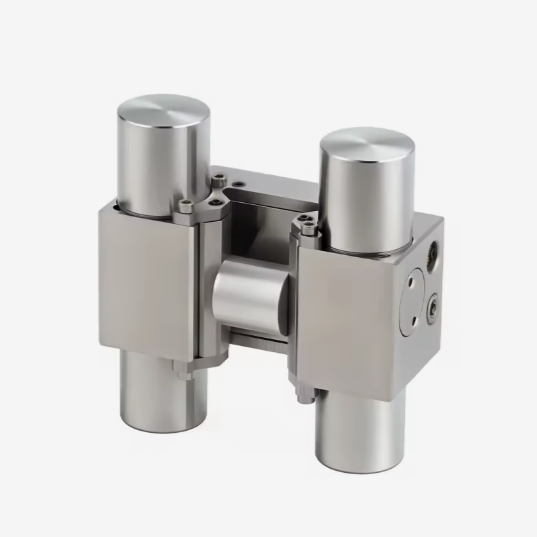

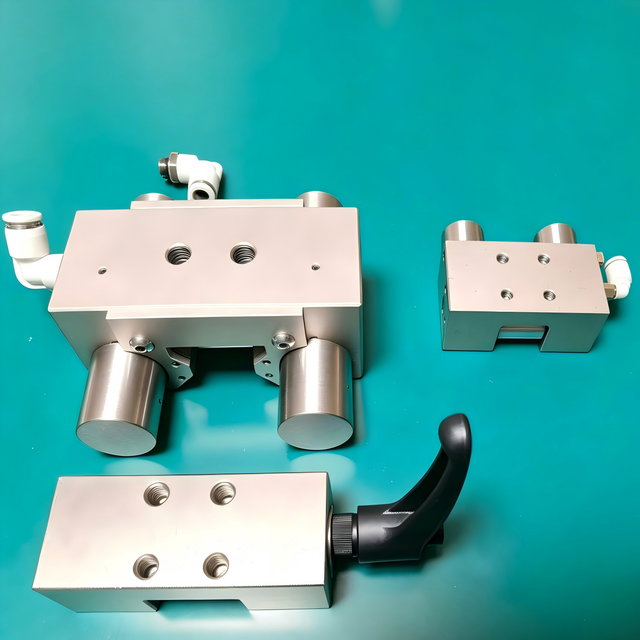

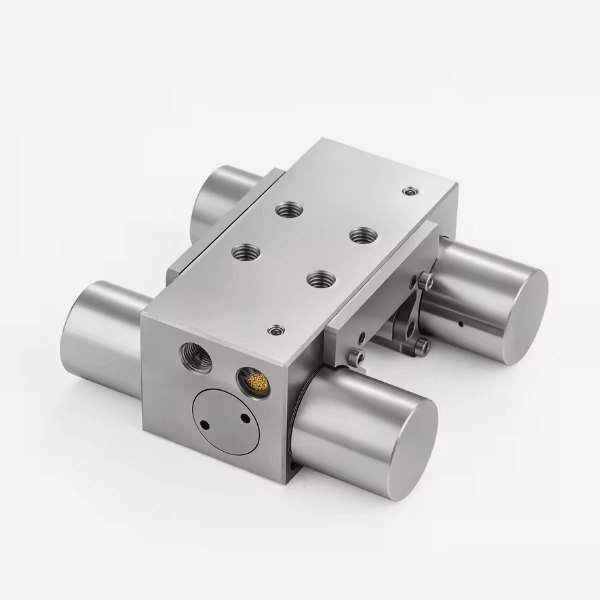

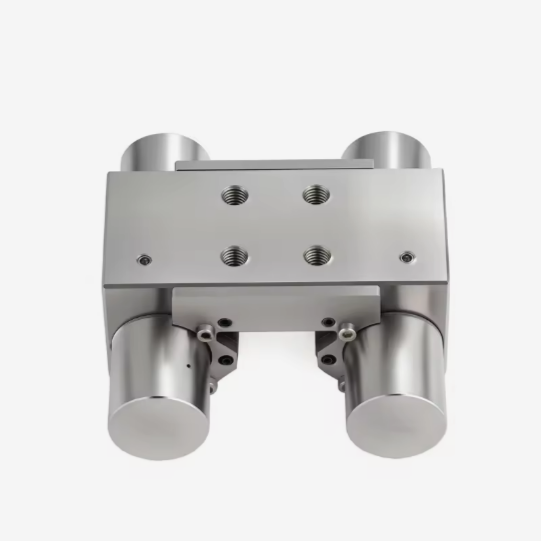

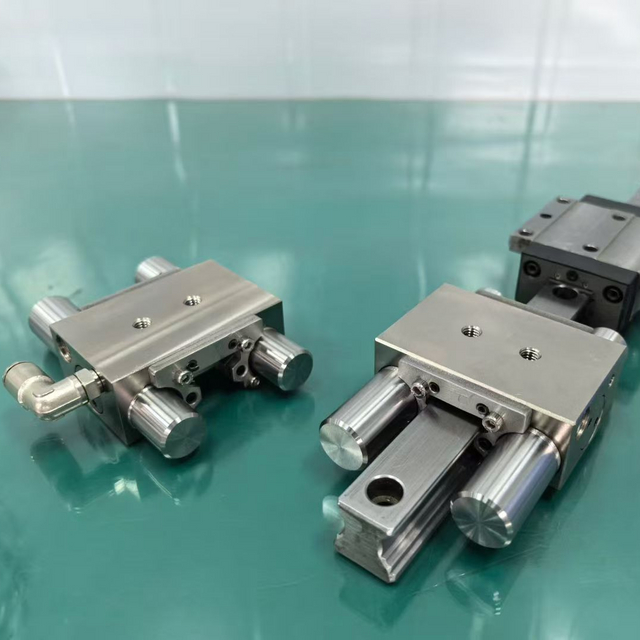

Our LMBPS series pneumatic normally closed clamping element serves as an effective emergency brake,ideally suited to prevent the Z-axis (vertical axis) slide from dropping,while also providing reliable capabilities for securing the slide,positioning,and vibration damping.

In operation,the clamping element is released when air pressure is applied and automatically engages via spring force when air pressure is vented.Featuring a compact design,this unit integrates seamlessly into existing systems without the need for design modifications such as extending linear guide lengths or altering slide dimensions.

LMBPS Series Pneumatic Clamp Material and Surface Treatment

- Air filter:Brass

- Contact surface:SKD11 equivalent,electroless nickel plating

- Adjustment bolt:SKD11 equivalent,electroless nickel plating

-Main Body:42CrMo,electroless nickel plating with sandblasting

Structure of LMBPS Series Pneumatic Normally Close Clamping Element

LMBPS Series Pneumatic NC Clamping Element Specifications

-Control method:Pneumatic (air pressure)

-Operating air pressure range: 0.55–0.65 MPa

-Service life: 5000000 cycles

LMBPS Series Pneumatic Normally Closed Clamp Features

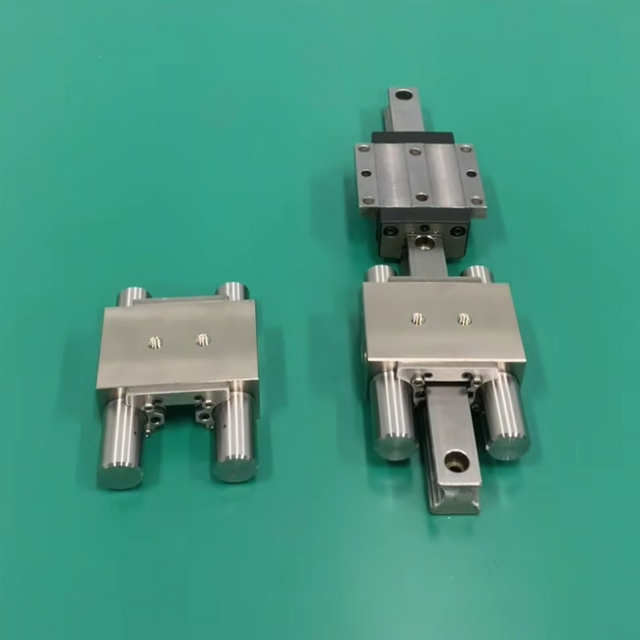

- Designed for use with ball (roller) linear guides

- For worktable fixing,positioning and anti-vibration

- Normally closed type

-When air pressure is applied: The clamp opens

-When air pressure is released: The clamp closes (clamping by spring force)

- Ordering model: LMBPS (linear guide model)

Example: For a size 25 linear ball guide,the ordering model is LMBPS25

(Note: Linear guide manufacturer and full model number must be specified,as jaw configuration varies with different linear guide models)

LMT Brand LMBPS Series Linear Guide Clamping Element Key Advantages:

-Lead Time:15~20days.

-Cost-Effective: 50%~70% cost savings.

-High Durability:Up to 5 million static clamping cycles.

-Broad Range of Products:For all common profile rail guides.

-Applicable guideway brand:HIWIN/THK/PMI/WON/NSK/NB/ABBA/IKO and so on

-Superior Material:All clamping elements are made from premium raw materials with material test certificates.

-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.

-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.

Order Notice

Please send us your linear rail and linear block model numbers.We will provide matching LMBPS clamping elements,along with 2D & 3D drawings and a quotation.

You can also send Zimmer MBPS model number or drawings.Our LMBPS series clamp can be manufactured with fully identical dimensions and technical parameters,serving as a true drop-in replacement.No mechanical modification to your equipment is needed.
