Clamp types | Pneumatic normally open |
Linear rail sizes | 15mm |
Standard type rated holding force(N) | 650N |
Working air pressure | 0.55~0.65Mpa |
Clamping service life | 5 million times |
Main body material | 42CrMo, sandblasted electroless nickel coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
Operating temperature | -10 °C~70 °C |
Applicable linear guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA/IKO and so on |
Structure

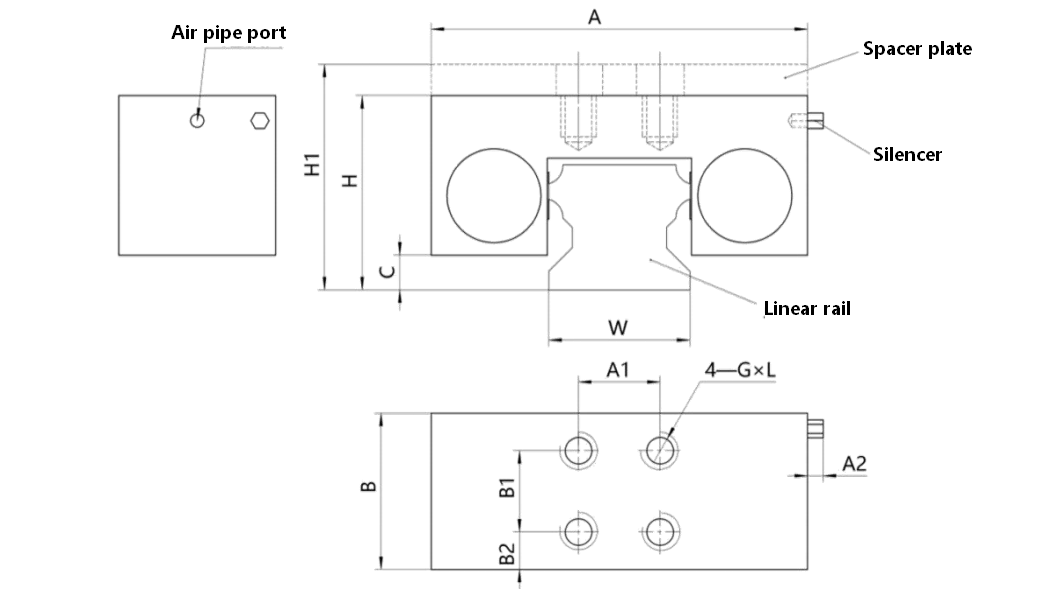

Dimensional drawing
Model | W | A | A1 | A2 | B | B1 | B2 | H | H1 | C | G | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
LMK15B | 15 | 55 | 15 | 5 | 39 | 15 | 15.5 | 24 | 28 | 2.5 | M4 | 4.5 |
