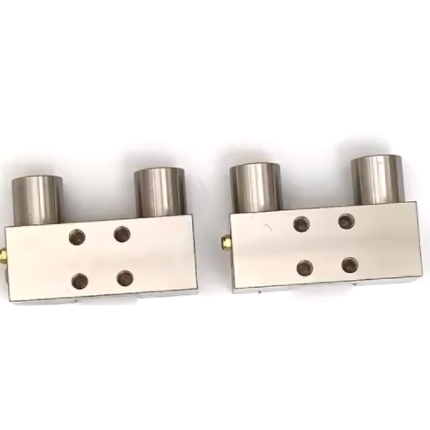

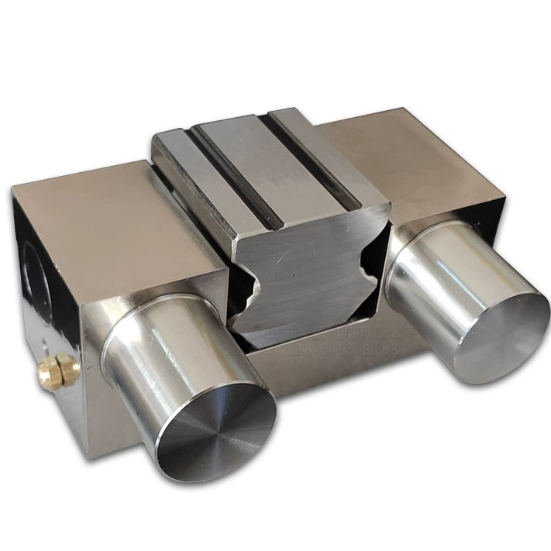

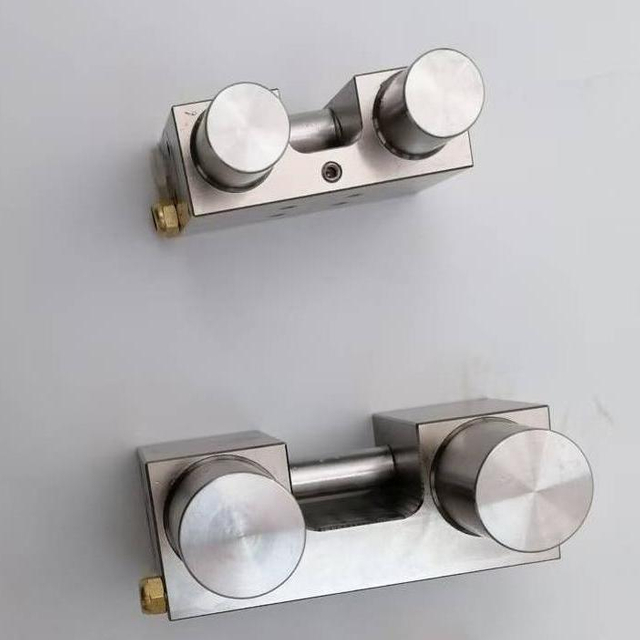

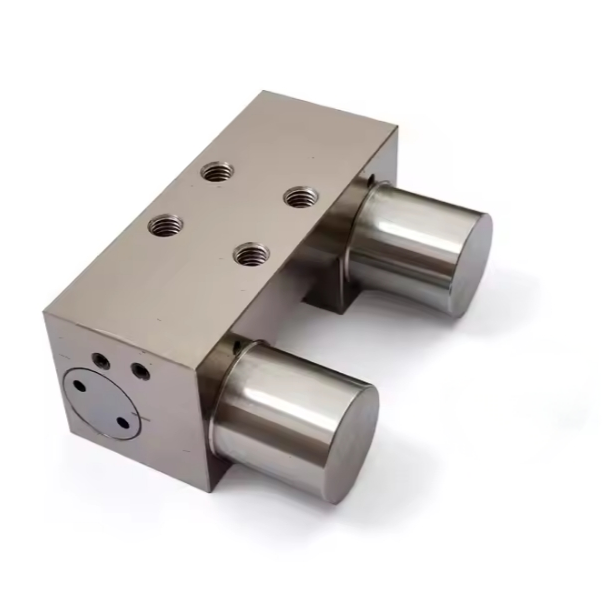

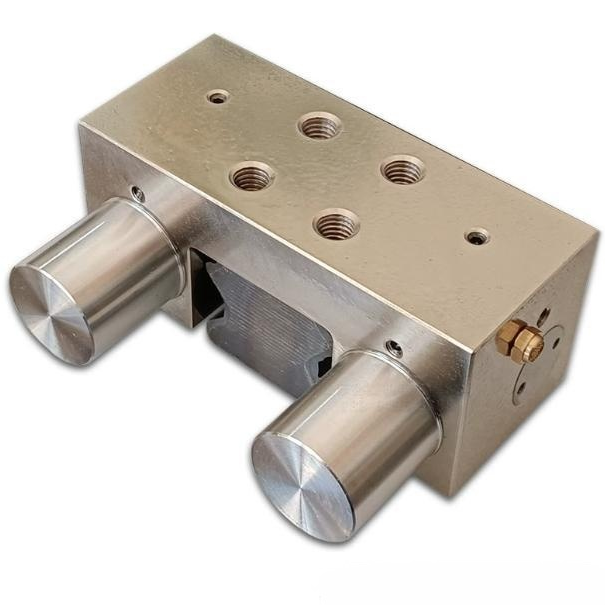

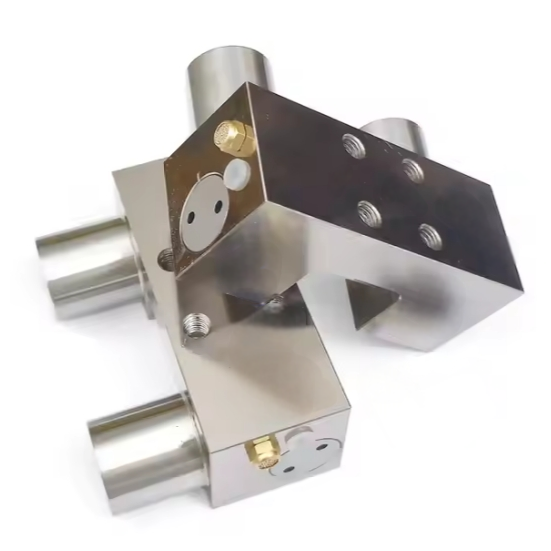

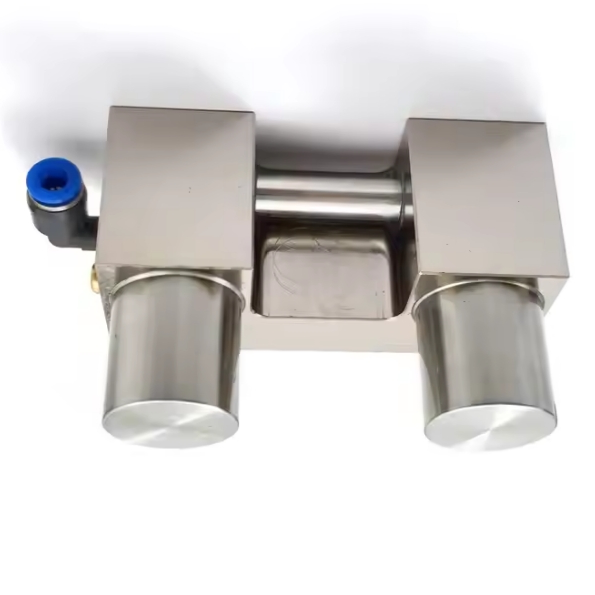

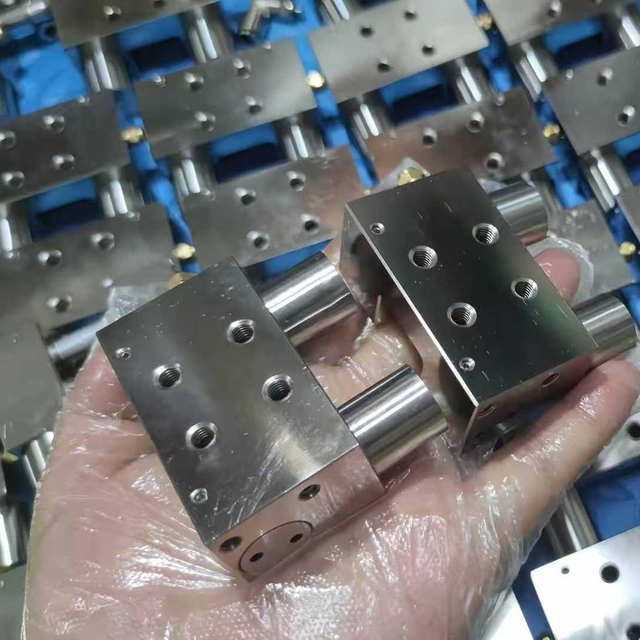

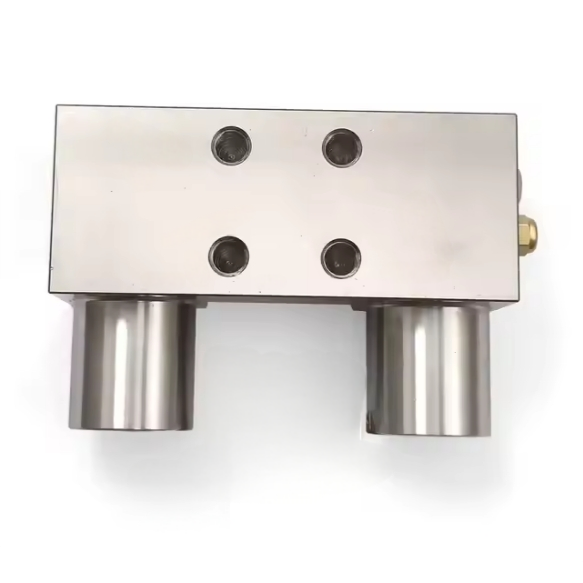

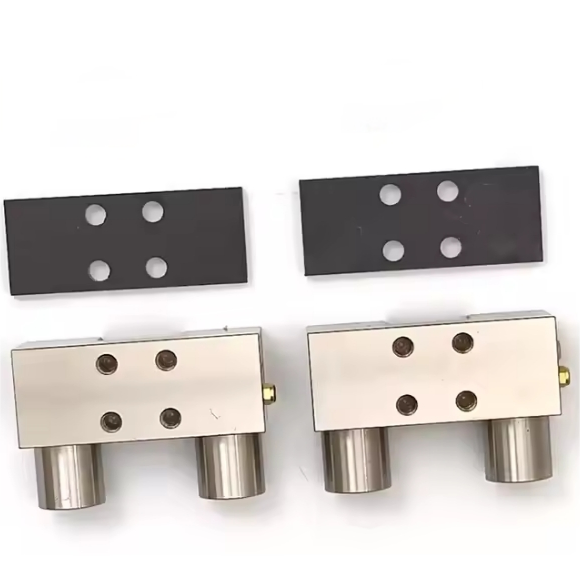

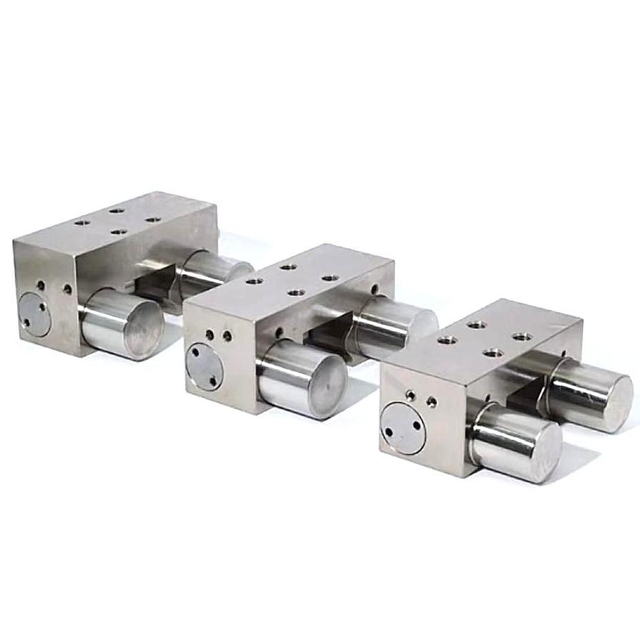

LMKS-B Series Pneumatic Linear Rail Clamping Element

LMKS-B series pneumatic normally closed linear guide clamp automatically maintains the rigid clamping state of the linear rail when there is no air pressure supply.This clamping element is specially developed for ball linear guides with specifications of 15mm~65mm.It is compatible with mainstream brand linear guides such as HIWIN,THK,PMI NSK,WON,etc.,and can be quickly installed without customized modification.

LMT Production and Processing Equipment

As a professional manufacturer of pneumatic normally closed clamps,we deliver superior clamping solutions for industrial applications worldwide.Our pneumatic NC clamping elements ensure reliable safety and precision in machinery,automation,and assembly processes,meeting rigorous operational demands.We help you reduce total clamping costs by 20% to 50% compared to standard market prices.With extensive in-house inventory,our pneumatic normally closed brakes ship promptly—eliminating long lead times and keeping your projects on schedule.

Additional Information

-We also support customization based on your specific dimensions.The lead time for customized products is approximately 14 days.

-For any parameters and information not shown here,please contact our sales team for inquiries or to obtain our full catalog.

LMKS-B Series Linear Rail Pneumatic Normally Close Type Dimension

LMKS-B Ball guide pneumatic normally closed type dimension

Download CAD

LMKS15B Pneumatic normally close clamp.STEP

LMKS20B Pneumatic normally close clamp.STEP

LMKS25B Pneumatic normally close clamp.STEP

LMKS2511B Pneumatic normally close clamp.STEP

LMKS30B Pneumatic normally close clamp.STEP

LMKS35B Pneumatic normally close clamp.STEP

LMKS45B Pneumatic normally close clamp.STEP

LMKS55B Pneumatic normally close clamp.STEP

LMKS65B Pneumatic normally close clamp.STEP

LMKS-B Series Linear Guide Pneumatic Normally Close Clamp Structure

MKS Series Pneumatic Normally Closed Clamp Structure

Features of Pneumatic Normally Closed Rail Clamp

-The surface of the pneumatic clamping element main body is nickel-plated and has good rust resistance.

-When there is air pressure,the linear rail clamp is released;when there is no air pressure,the linear guide is clamped by spring force.

-Depending on the holding force requirements of the clamping mechanism,standard connection or pressurized connection can be used.

Pneumatic Normally Closed Rail Clamp Advantages:

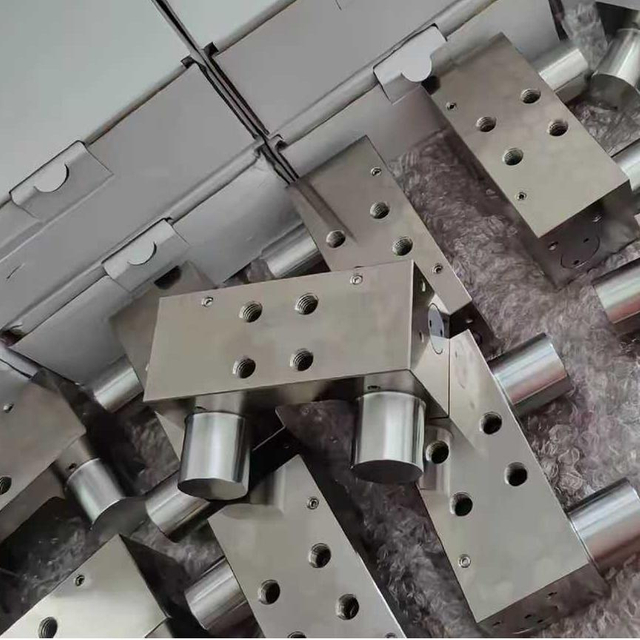

-Lead Time:Large stock inventory.

-Cost-Effective: 50%~70% cost savings.

-High Durability:Up to 5 million static clamping cycles.

-Broad Range of Products:For all common profile rail guides.

-Completely replace the Zimmer or NBK brand MKS series linear guide clamp.

-Customizable Design:Tailored to meet specific application requirements.

-Machining Precision:Instead of ordinary milling,we adopt precision grinding to ensure much higher accuracy.

-Quality Control:Every clamp will go through full performance testing and inspection before shipment to ensure 100% qualified products.

-Superior Material:We use 42CrMo alloy steel for the clamp's main body,while most other Chinese suppliers use C45 steel.Our clamps offer higher strength,better wear resistance and longer service life.

-Corrosion Resistance:We use electroless sandblasting nickel plating,which provides excellent anti-rust and anti-corrosion performance,a premium appearance,and resistance to scratching or peeling after long-term use.

LMKS-B Series Pneumatic NC Clamping Element Working Parameters

Model	LMKS	LMKS-04	LMKS-03
Open air pressure	0.55MPa	0.4MPa	0.3MPa
Max working pressure	0.6MPa
Response time	≤0.06s
Operating temperature	0℃~70℃
Clamping service life	5 million times

(1)Standard Linear Guide Clamp Rated Holding Force and Air Consumption

Model Rated holding force(N) Air consumption (ℓ/cycle（ANR））

Standard connection/pressurized connection Standard connection/pressurized connection

LMKS15B 400N/1050N 0.011/0.035

LMKS20B 600N/1300N 0.019/0.064

LMKS25B 750/1400N 0.021/0.07

LMKS30B 1050/2600N 0.03/0.12

LMKS35B 1250/ 3250N 0.03/0.13

LMKS45B 1450/3300N 0.07/0.3

LMKS55B 1450/3300N 0.07/0.3

LMKS65B 1450/3000N 0.07/0.3

Note: The data in the table are values at 0.6MPa air pressure. The holding force is proportional to the air pressure within the working pressure range.

(2)0.4MPa Low Pressure Rail clamp rated holding force and air consumption

Model Rated holding force(N) Air consumption (ℓ/cycle（ANR））

Standard connection/pressurized connection Standard connection/pressurized connection

LMKS15B-04 300N/650N 0.011/0.035

LMKS20B-04 500N/1200N 0.015/0.05

LMKS25B-04 650/1300N 0.016/0.05

LMKS30B-04 850/1700N 0.03/0.09

LMKS35B-04 1100/ 1900N 0.03/0.1

LMKS45B-04 1350/2000N 0.07/0.2

LMKS55B-04 1350/2000N 0.07/0.2

LMKS65B-04 1350/2000N 0.07/0.2

Note: The pressurized connection data is the value at 0.4MPa air pressure.
