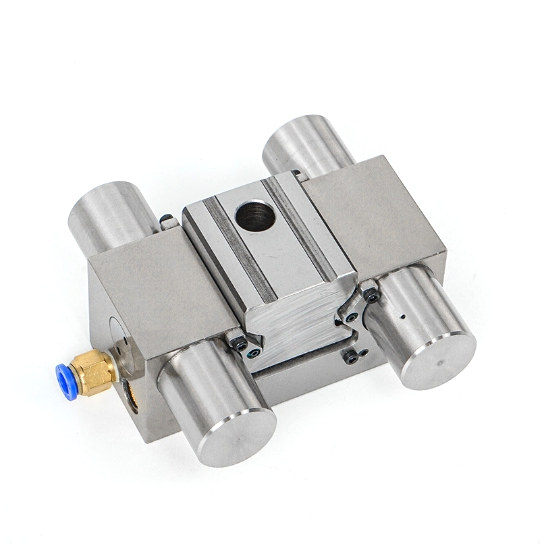

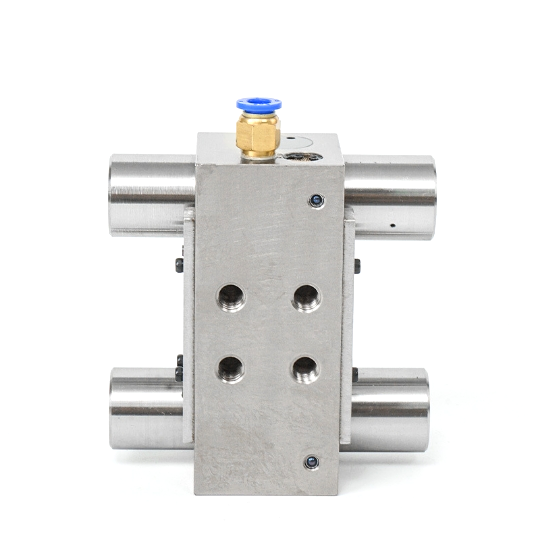

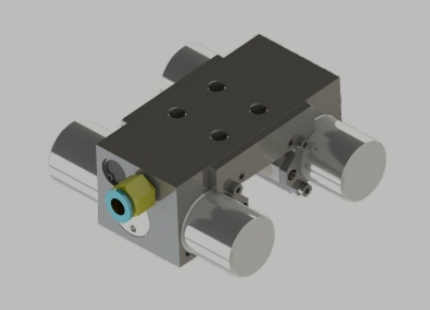

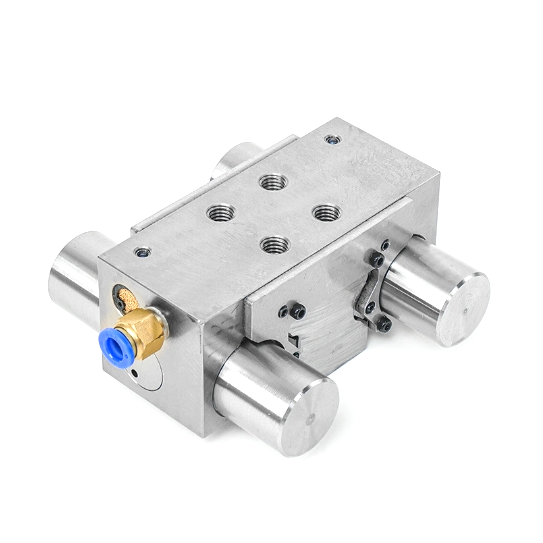

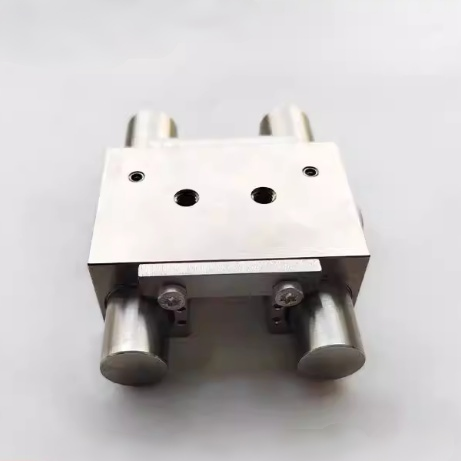

Clamping and braking are realized by spring energy storage acting on the molded block.Unclamping by pneumatic pressure.

Quick response, emergency brake in case of power failure,preventing the vertical axis from falling and collision.

Easy to install, directly connected with the worktable, no need to change the size of the worktable.

High positioning accuracy,suitable for fixed machining center table.

Linear guide clamp working condition

Specification code	Response time	Working pressure	Operating temperature	Brake life
Pneumatic normally closed type	0.06S	0.45~0.8MPa	0℃~70°C	>2000 times

Rated holding force and air consumption

 Model                                              Rated holding force(N)                                         Air consumption (ℓ/cycle（ANR））

---

CPBS35R                                                                2800N                                                                       0.1

---

CPBS45R                                                               4000N                                                                        0.16

---

CPBS55R                                                                5000N                                                                       0.26

---

CPBS65R                                                                5100N                                                                       0.26

---
