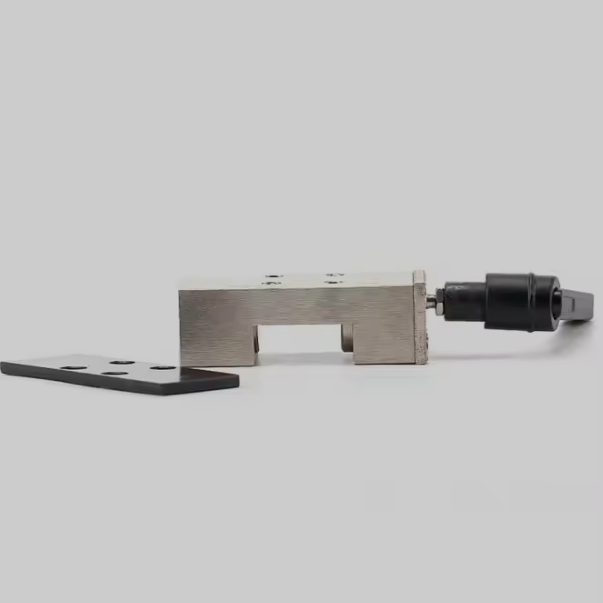

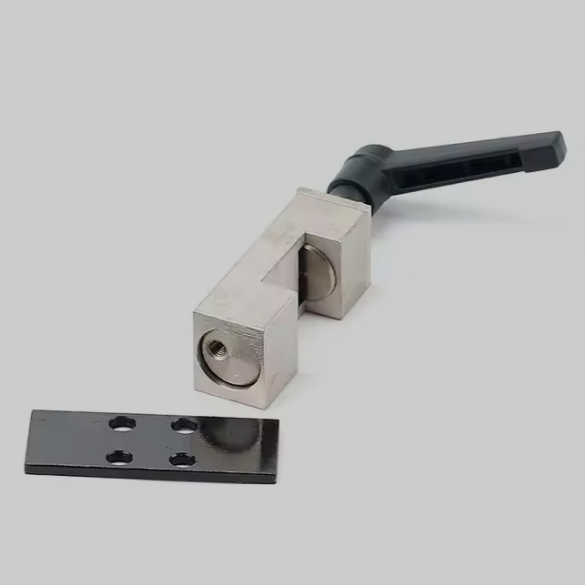

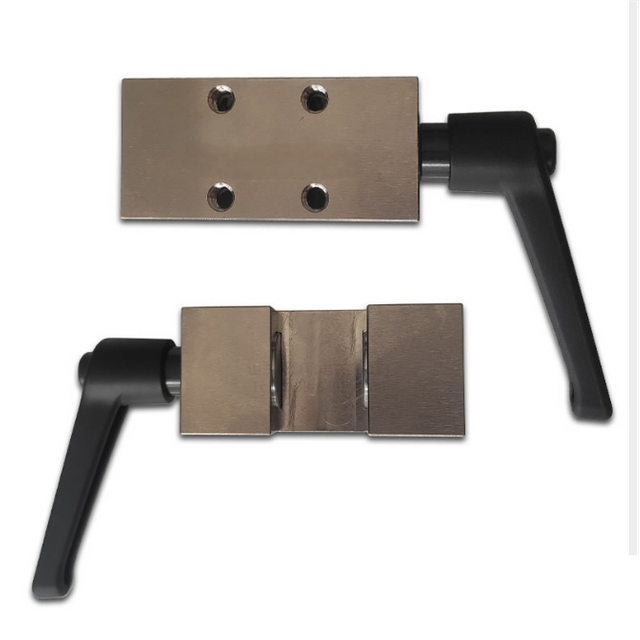

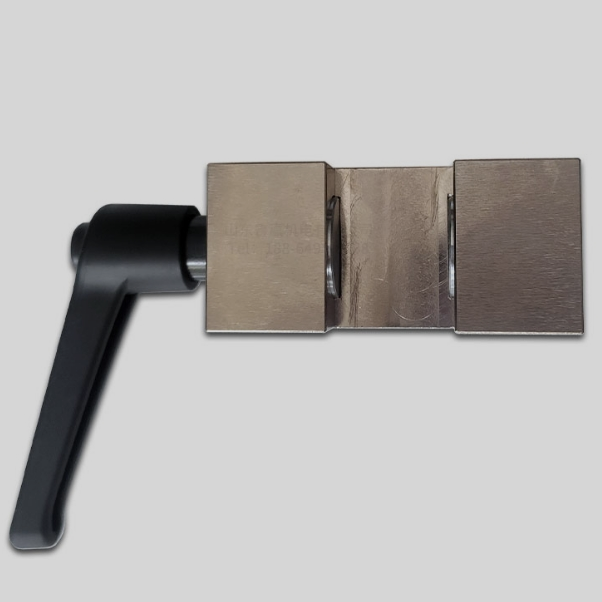

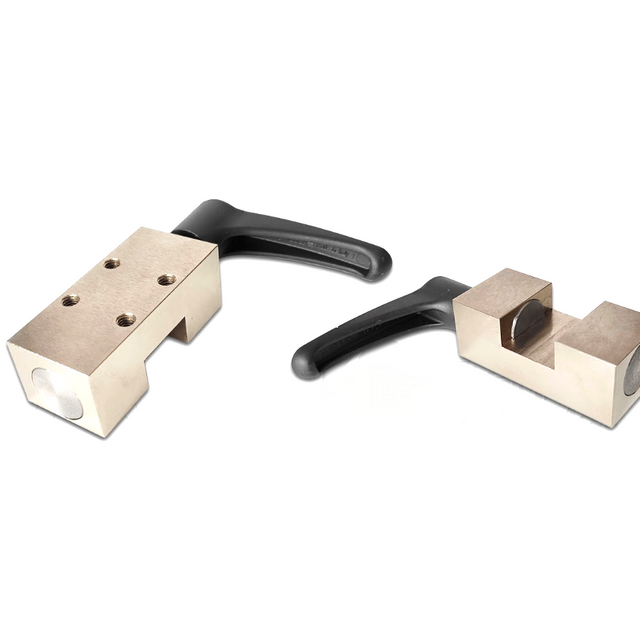

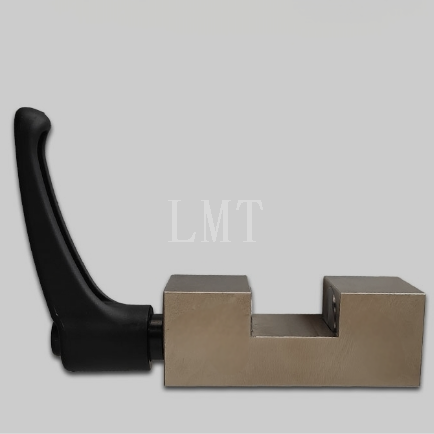

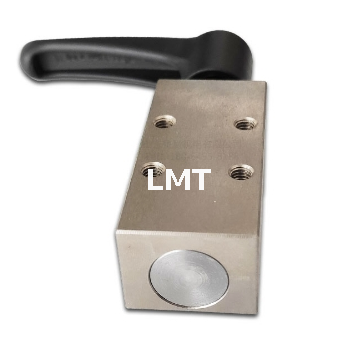

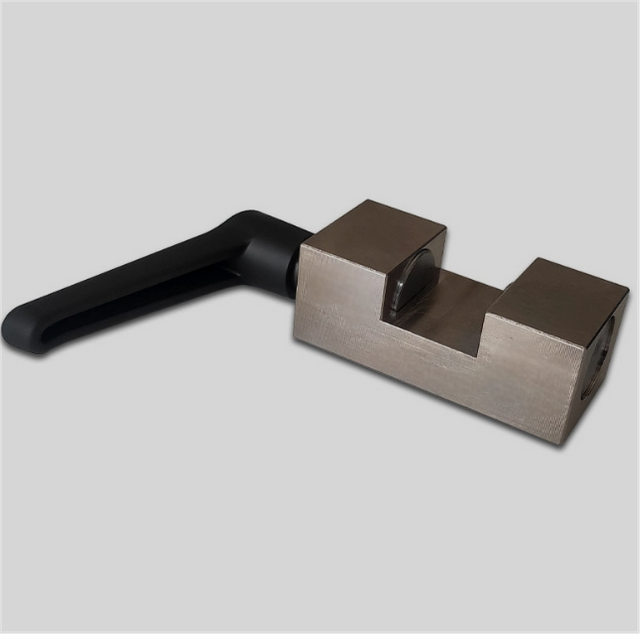

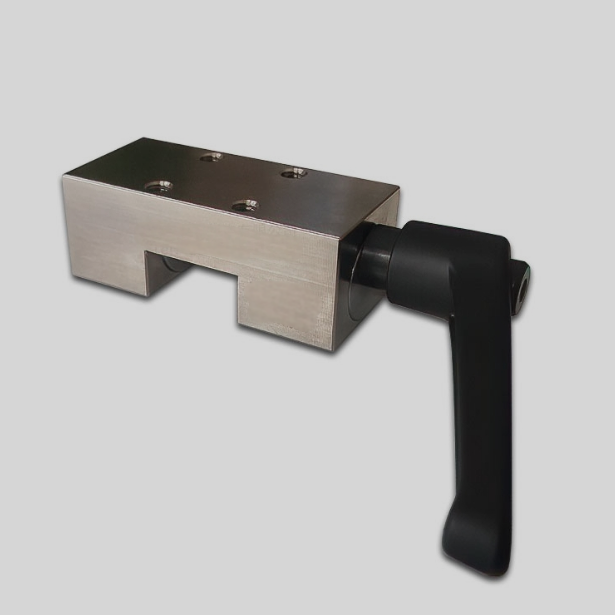

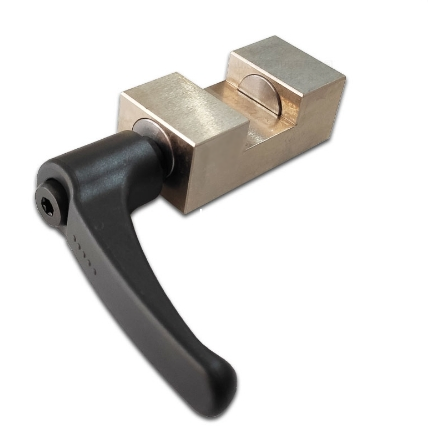

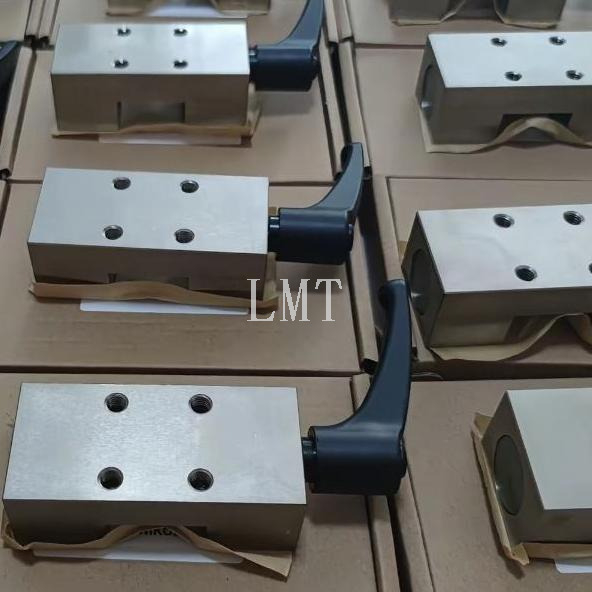

Experience precision control with our LMSK manual linear guide clamping element.A simple rotation of the handle instantly clamps or releases your linear guide,eliminating complex setups.This manual clamp braking fits industry-standard linear guides,including 15mm,20mm,25mm,30mm,35mm,45mm,55mm,and 65mm sizes.
Please note:If our standard linear guide clamp dimensions cannot meet your installation‑size requirements,please contact our sales team.We offer custom‑manufacturing service to produce items according to your required dimensions and technical parameters.Custom‑made clamping elements are priced the same as standard‑range products,with a lead time of only 7 days.
Features of the Manual Linear Guide Rail Clamping Element
-It has the functions of fixing the slide table,precise positioning, preventing vibration.
-Clamping by rotating the handle.
-The manual clamping element main body surface is nickel-plated,which has good rust resistance.
-Novel design and compact structure.

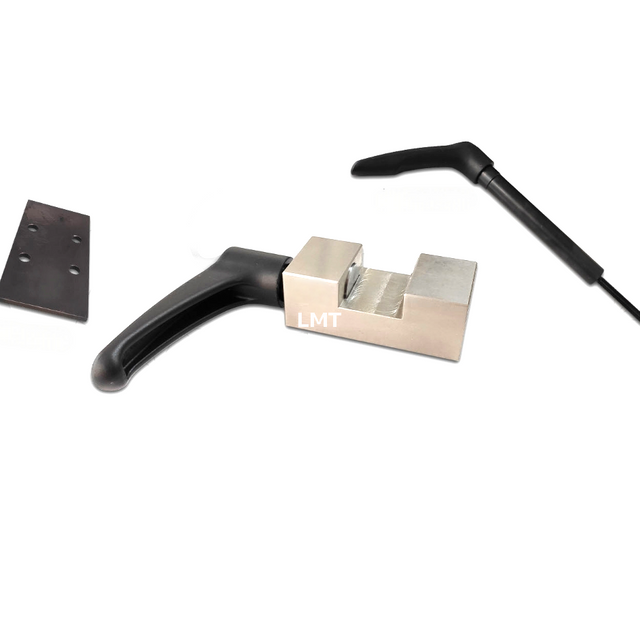

Various Handles Available,Select Suitable One While Ordering
We offer a variety of manual linear guide clamp handles.Below are our most popular styles.If you need any other custom handles, please contact our sales team.
Manual Linear Guide Clamp Parameters and Dimensions
| Model No. | Rated holding force(N) |
LMSK1501 | 1200 |
| LMSK2001 | 1200 |
| LMSK2002 | 1200 |
LMSK2501 | 1200 |
LMSK3001 | 2000 |
LMSK3501 | 2000 |
LMSK4501 | 2000 |
LMT Brand Manual Linear Rail Clamp Braking Advantages:
-Cost-effective:50%~70% cost savings.
-Maintenance free:Up to 50,000 static clamping cycles.
-Broad range of products:For all common profile rail guides.
-Tool-free opening and closing:By turning the clamping lever.
-Customizable dimensions:Tailor linear guide clamp to your exact requirements with custom sizing options.
-Handle options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
